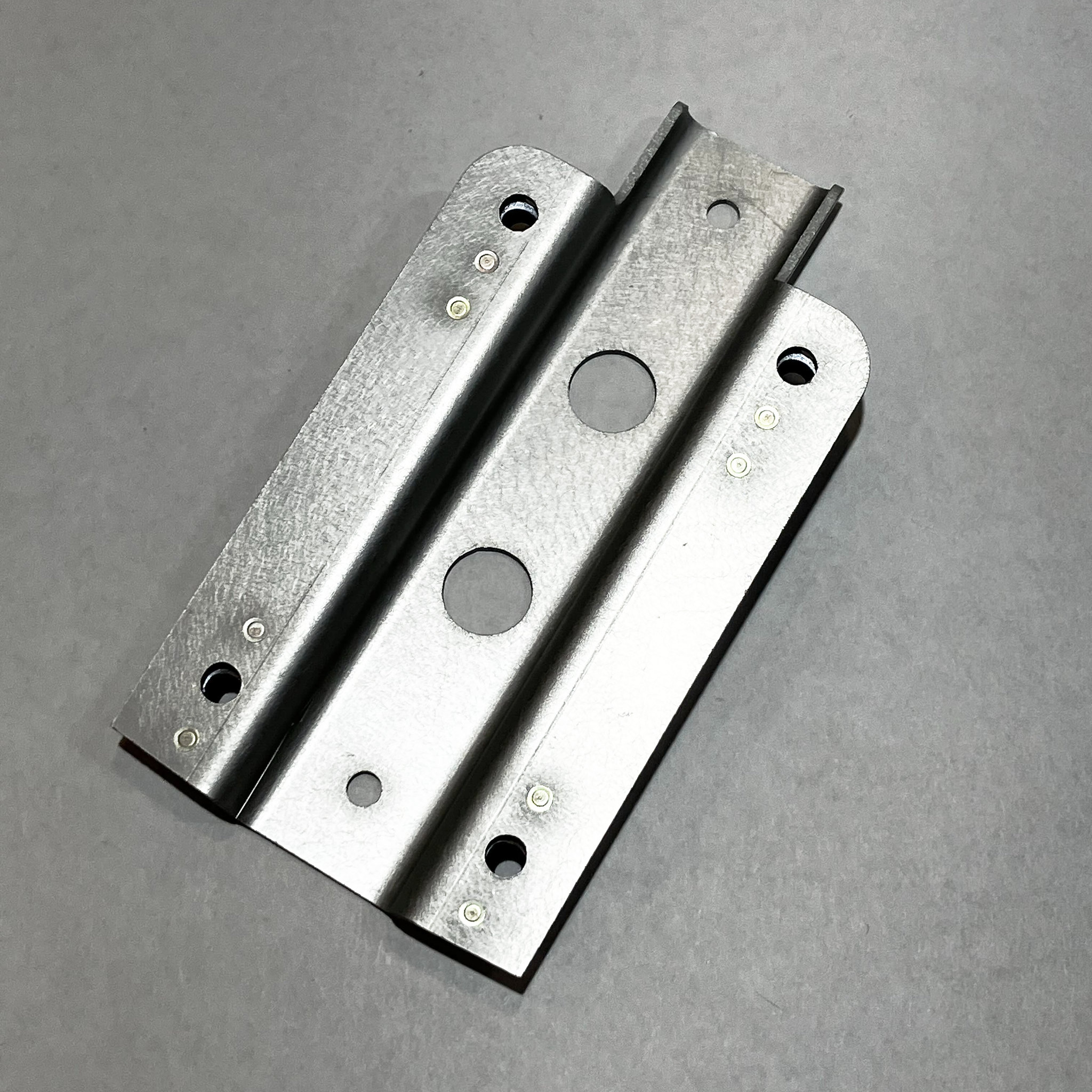

Cirrus Aircraft 11799-004 Pant Bracket — Nose Gear Wheel Fairing
One of the two brackets that attach the nose wheel fairing (pant) to the nose gear fork, listed in the nose landing gear installation (IPC 32-20-02). Two per aircraft.
Fit, per the Cirrus Illustrated Parts Catalog:
- Installed on SR20 serials 2232 and up, SR22 serials 3953 and up, and SR22T serials 0536 and up
- Cirrus directs spares for the earlier pant brackets 11799-001, -002 and -003 to this part, covering earlier SR20, SR22 and SR22T serials
Serial ranges are transcribed from the Cirrus IPC. Confirm your aircraft's serial number, installed equipment and service bulletin compliance against current Cirrus documents before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
