Description

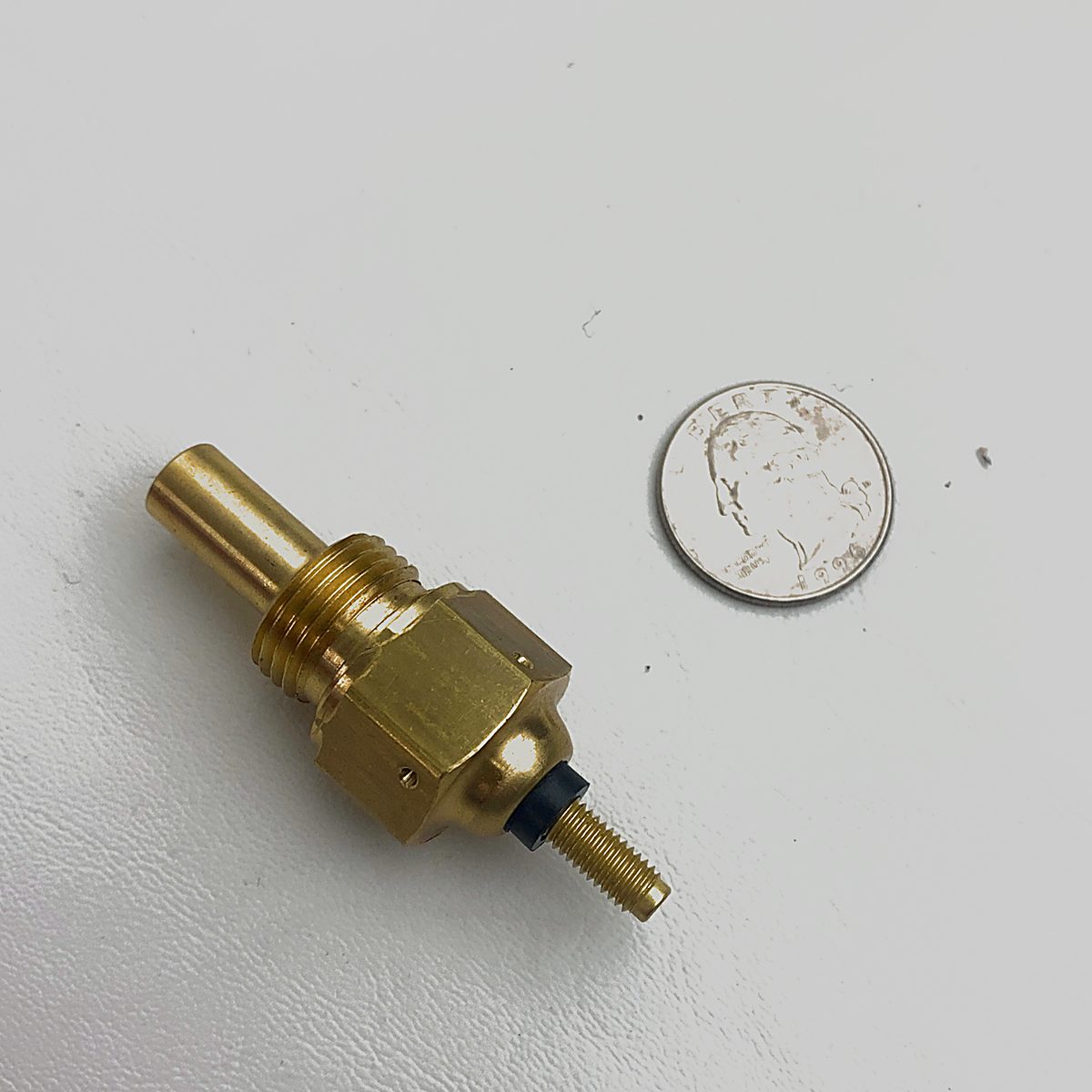

Cirrus Aircraft 12634-001 Oil Temperature Probe
Oil temperature sensor probe for aircraft without Perspective avionics, listed in the oil pressure/temperature sensor installation (IPC 79-30-01). Listed as an alternate for 15848-001, which Cirrus no longer lists.
Fit, per the Cirrus Illustrated Parts Catalog:
- SR20 serials 1005 and up, without Perspective avionics
- SR22 serials 0002 and up, without Perspective avionics
Aircraft with Perspective avionics list a different sensor, such as 24761-002.
Serial ranges are transcribed from the Cirrus IPC. Confirm your aircraft's serial number, installed equipment and service bulletin compliance against current Cirrus documents before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
