Description

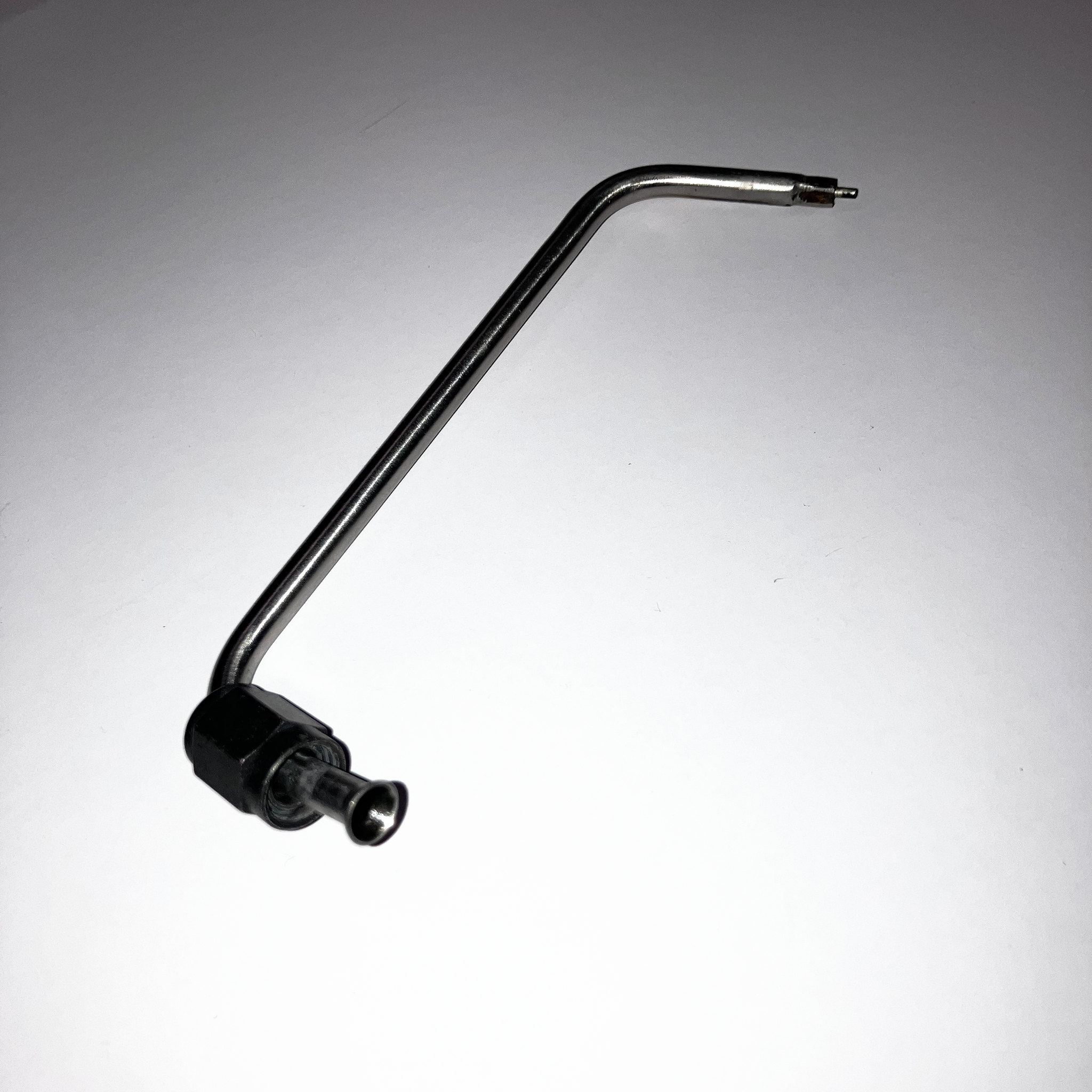

Cirrus Aircraft 13857-001 Nozzle — Slinger Ring (Propeller De-Ice)
Nozzle, slinger ring, quantity 1. Cirrus's ordering portal lists 13857-001 as NOZZLE with the description “Slinger Ring”; the Cirrus parts catalog (IPC) lists it as FEED TUBE, SLINGER RING in the Basic² (IPC 30-06-01) and FIKI (IPC 30-07-01) ice protection installations. The IPC also lists 13857-001 for spares in the positions of 15388-005 and 15388-006 in those installations. The IPC marks this row with a symbol note; read the note at that location in your IPC before ordering.
Fit, per the Cirrus Illustrated Parts Catalog:
- Basic² ice protection (IPC 30-06-01): SR22 serials 3660 and up, SR22T serials 0004 and up
- FIKI ice protection (IPC 30-07-01): SR22 serials 3660 and up, SR22T serials 0004 and up
- FIKI ice protection (IPC 30-07-01, later installation): SR22 serials 4435 and up, SR22T serials 1473 and up
TKS filters: Cirrus's maintenance manual (05-10) schedules replacement of the ice protection system filter every 1,200 hours or 2 years, whichever comes first. Filter elements: 26115-101 (Basic and Basic² systems; FIKI SR22 3403–3850 and SR22T 0001–0315) and 21986-203 (FIKI SR22 3851 and up, SR22T 0316 and up).
Serial ranges are transcribed from the Cirrus IPC. Confirm your aircraft's serial number, installed equipment and service bulletin compliance against current Cirrus documents before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
