Description

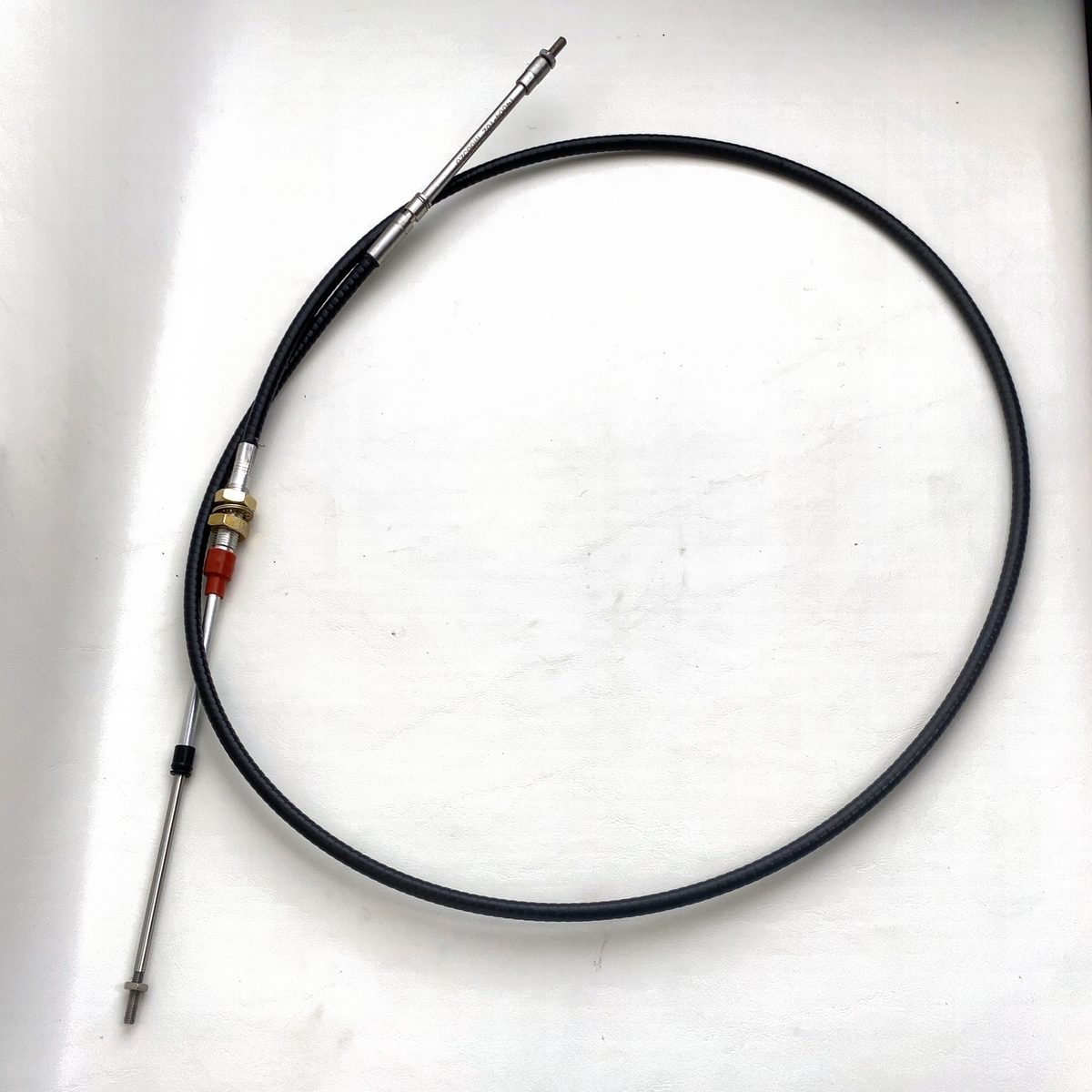

Cirrus Aircraft 14064-102 Cable — Throttle and Propeller Control, SR22
Control cable listed in the SR22 throttle control cable and governor control cable installations (IPC 76-10-03, 76-10-04).
Fit, per the Cirrus Illustrated Parts Catalog:
- Throttle: SR22 serials 0849 through 3668
- Governor: SR22 serials 0849 and up (through 9749 in the later figure)
Replaces 14064-101, which Cirrus no longer lists (the IPC directs its spares here). From SR22 serial 3669 the throttle position lists 14064-103.
Serial ranges are transcribed from the Cirrus IPC. Confirm your aircraft's serial number, installed equipment and service bulletin compliance against current Cirrus documents before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
