Description

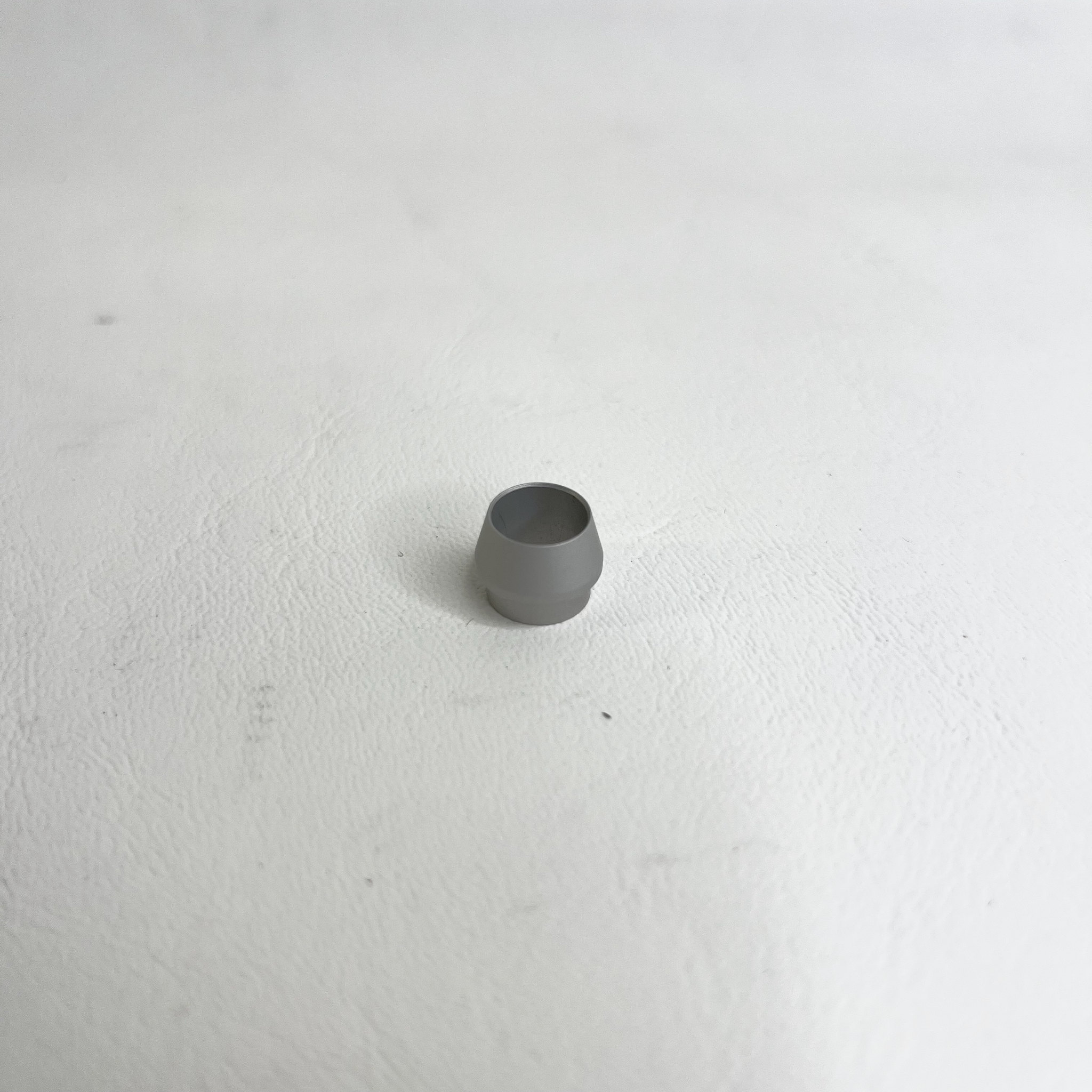

Cirrus Aircraft 15164-022 Olive (Ferrule) — Aluminum, 5/16 in
Aluminum olive (compression ferrule) for 5/16 inch TKS ice protection fluid line fittings, used with the nut and the 15164-092 O-ring. Listed throughout the FIKI ice protection installation (IPC 30-07-01).
Fit, per the Cirrus Illustrated Parts Catalog:
- SR22 serials 3403 and up with FIKI ice protection
- SR22T serials 0001 and up with FIKI ice protection
This listing is Cirrus part 15164-022.
Serial ranges are transcribed from the Cirrus IPC. Confirm your aircraft's serial number, installed equipment and service bulletin compliance against current Cirrus documents before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
