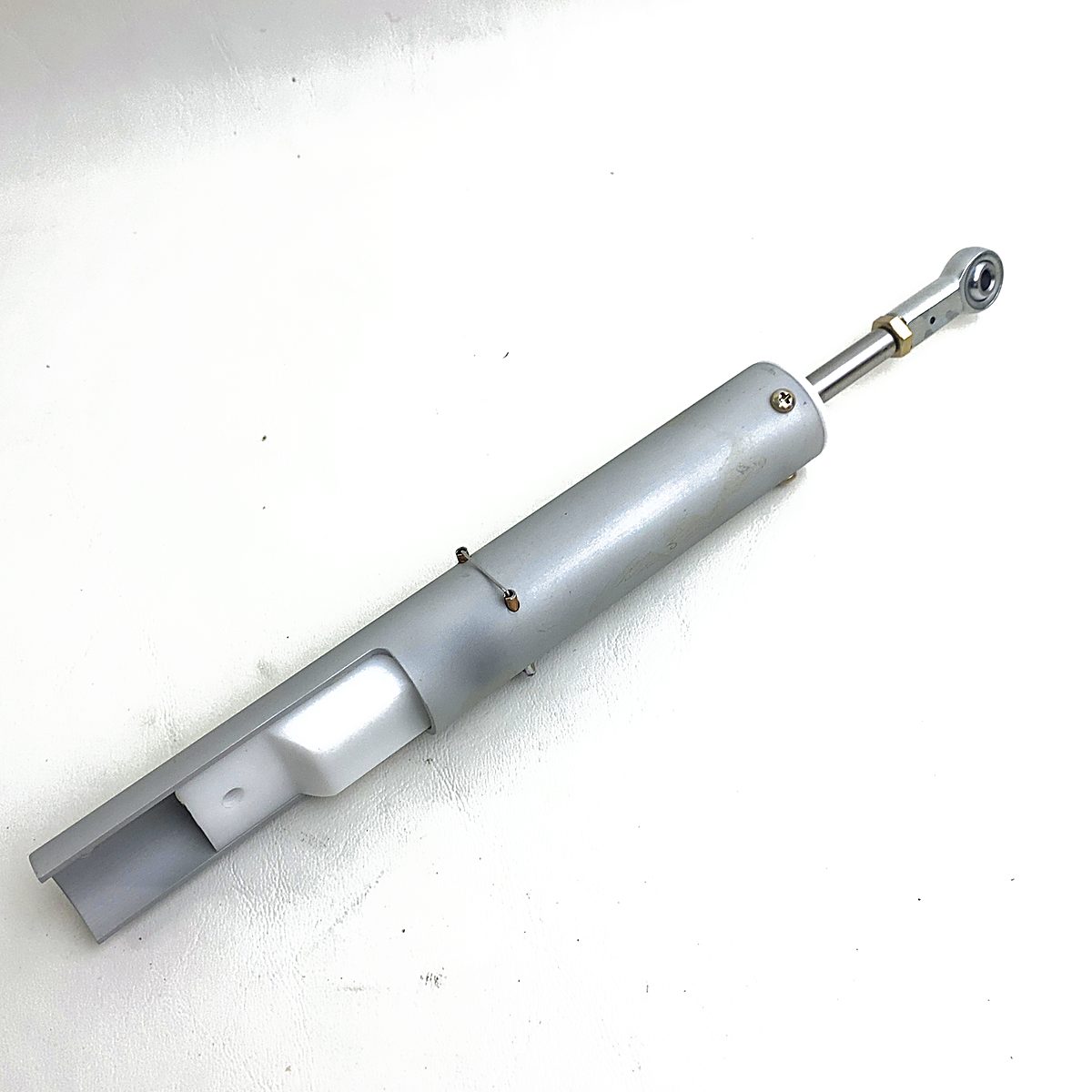

Cirrus Aircraft 15660-001 Roll Trim Spring Cartridge Assembly
Roll trim spring cartridge assembly (LH only), listed in the roll trim installation (IPC 27-10-03).
Fit, per the Cirrus Illustrated Parts Catalog:
- SR20 serials 1383 and up; earlier serials after SB2X-27-08
- SR22 and SR22T (per IPC rows; confirm your serial)
The IPC directs spares for the earlier cartridges (before SB2X-27-08) to this part. Cirrus still lists one of them, 10780-004.
Serial ranges are transcribed from the Cirrus IPC. Confirm your aircraft's serial number, installed equipment and service bulletin compliance against current Cirrus documents before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
