Description

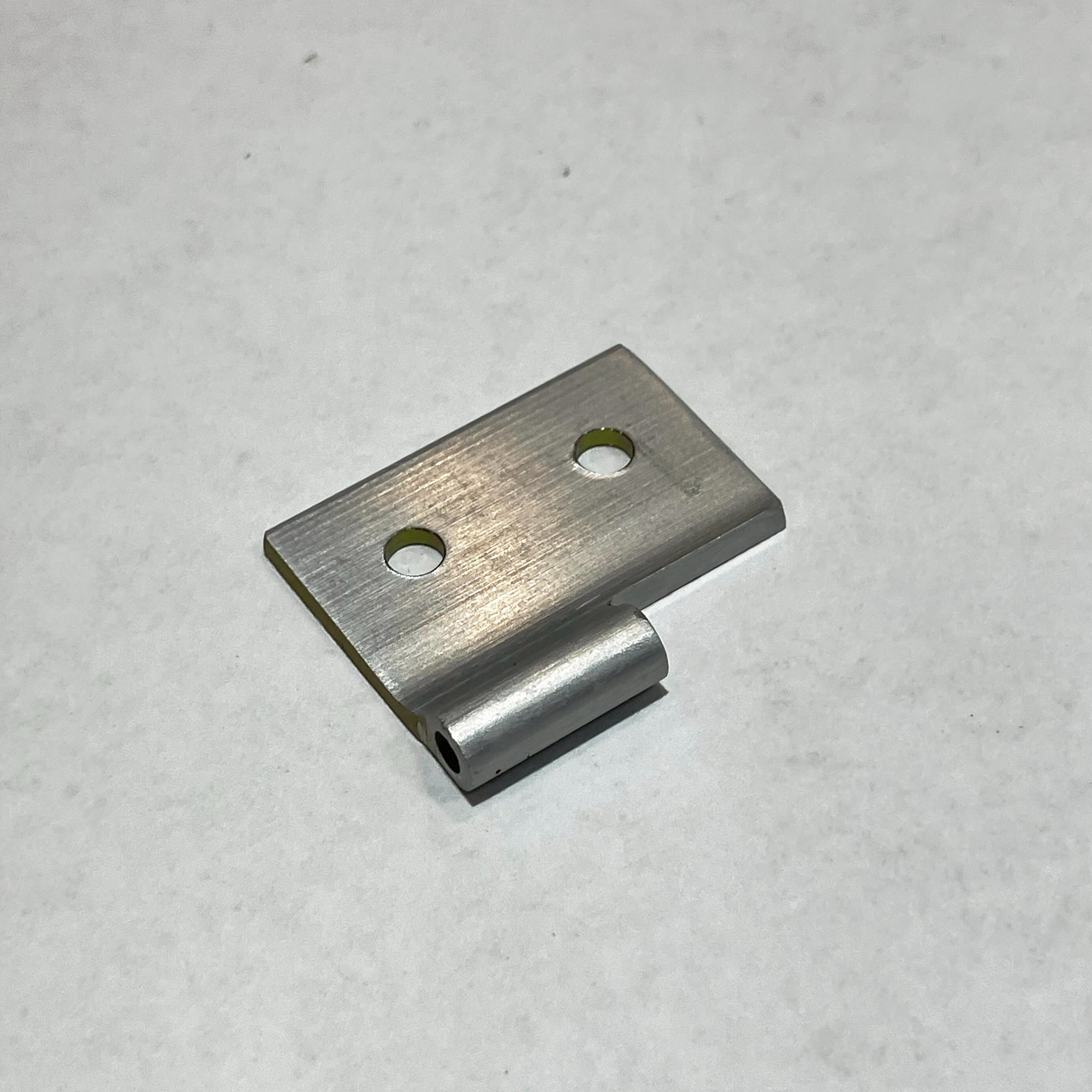

Cirrus Aircraft 26960-104 Hinge Tab — Nose Gear Fairing
Hinge tab on the nose gear fairing, listed in the nose gear fairing installation (IPC 32-20-01), two per aircraft.
Fit, per the Cirrus Illustrated Parts Catalog:
- SR20 serials 2075 and up
- SR22 serials 3712 and up
- SR22T serials 0066 and up
- Cirrus directs spares for the earlier hinge tab (SR20 2065 through 2074, SR22T 0001 through 0065) to this part
Serial ranges are transcribed from the Cirrus IPC. Confirm your aircraft's serial number, installed equipment and service bulletin compliance against current Cirrus documents before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
