Description

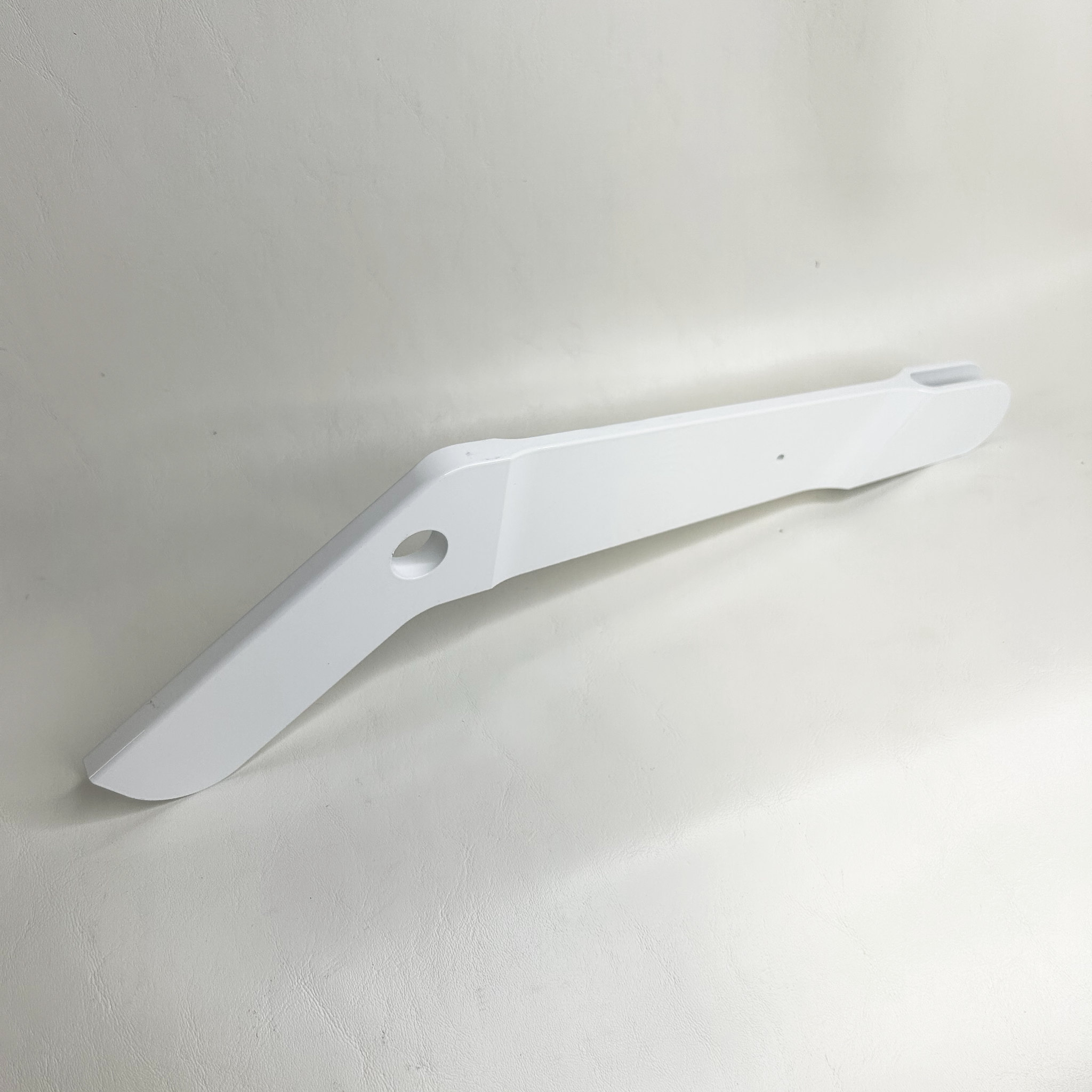

Cirrus Aircraft 39731-001 Flap Hinge — Inboard, One-Piece, LH or RH
One-piece inboard flap hinge, listed in the flap hinge installation (IPC 57-40-01) for both the LH and RH inboard positions.
Fit, per the Cirrus Illustrated Parts Catalog:
- SR20 serials 1005 through 1885
- SR22 serials 0002 through 2437
- Listed as the alternate for the earlier inboard hinges 14571-003 through 14571-008
Serial ranges are transcribed from the Cirrus IPC. Confirm your aircraft's serial number, installed equipment and service bulletin compliance against current Cirrus documents before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
