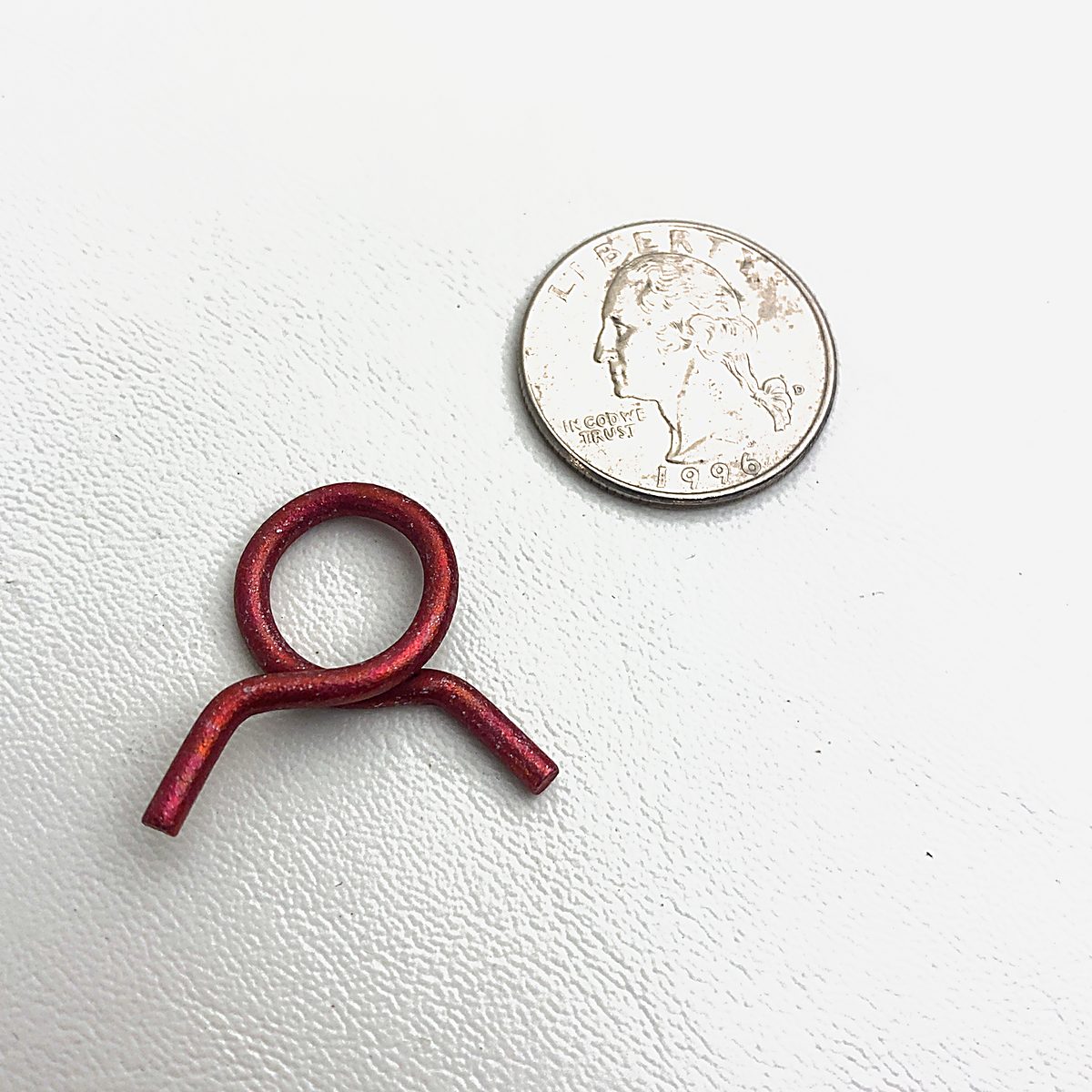

Cirrus Aircraft 50566-050 Spring Clip / Hose Clamp
Spring clip (price list description: Clip, Spring). The IPC calls this part number a clamp, a spring clamp and a hose clamp, depending on the installation. It is listed in the fuel vent installation (IPC 28-10-01), in the glycol vent of the Basic² and FIKI ice protection installations (IPC 30-06-01, 30-07-01), and in the SR20 vacuum system hose listing (IPC 37-10-01). Quantity is 2 at each fuel vent and glycol vent location.
Fit, per the Cirrus Illustrated Parts Catalog:
- Fuel vent (IPC 28-10-01): SR20 serials 1005 through 1885; SR22 serials 0002 through 1818
- Basic² ice protection, glycol vent (IPC 30-06-01): SR22 serials 2438 and up, SR22T serials 0001 and up
- FIKI ice protection, glycol vent tube assembly 17383-001 (IPC 30-07-01): SR22 serials 3403 and up, SR22T serials 0001 and up
- FIKI ice protection, glycol vent (IPC 30-07-01, later installation): SR22 serials 4435 and up, SR22T serials 1473 and up
- Vacuum system hose clamp, quantity 4 (IPC 37-10-01): SR20 serials 1005 through 1267
The IPC symbol notes for the SR22 and SR22T fuel vent installation (IPC 28-10-01) state: "WHEN REPLACING FUEL VENT LINE OR FUEL VENT LINE CLAMP, BOTH P/N 13407-104 AND 50566-050 MUST BE REPLACED." Check your aircraft's current IPC for how that note applies to your serial number.
Serial ranges are transcribed from the Cirrus IPC. Confirm your aircraft's serial number, installed equipment and service bulletin compliance against current Cirrus documents before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
