Cirrus Aircraft 70088-001 Lower Cowl Heat Shield Kit — SR22, SB2X-71-08

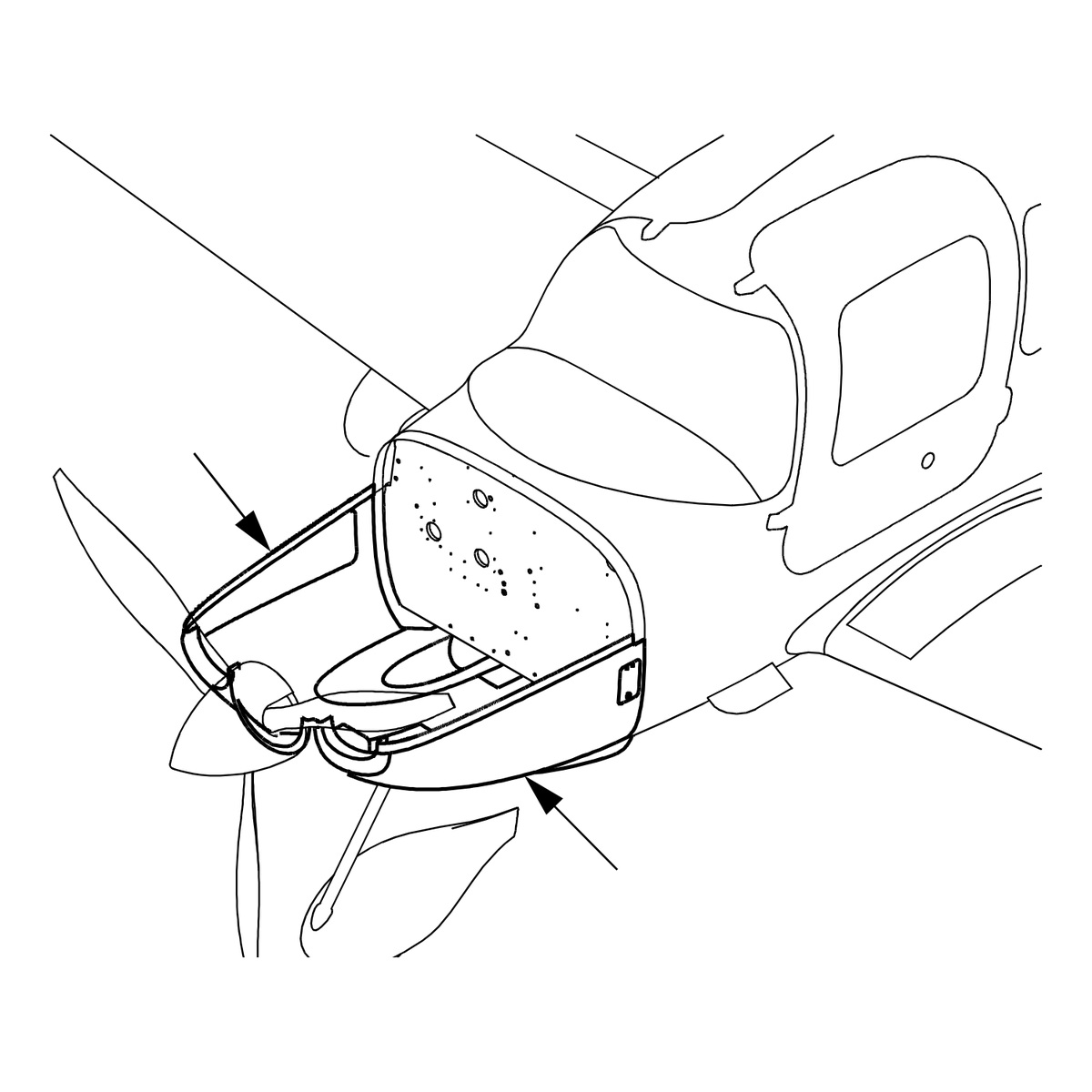

On affected SR22s, heat from the exhaust pipes can damage the inside of the lower engine cowling.
Cirrus classes SB2X-71-08 as mandatory, at the next annual inspection or within 100 flight hours, whichever occurs first.
What the kit does: Supplies aluminum heat-shield tape and tape primer for the inside of the lower cowling.
Why it works. The aluminum shielding keeps exhaust heat off the cowling.
Note: For SR22 serials 0795 and 0820 thru 0996. Refer to SB2X-71-08 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
