Description
Cirrus Aircraft 70091-002 Cabin Trim Standoff Kit — Main Headliner, SR22, SB2X-25-12
To reduce the likelihood of cabin trim coming loose, SB2X-25-12 installs standoff fasteners in the cabin trim.
The bulletin is optional, at the owner's option. The locator-pin tools it uses can be fabricated to the bulletin's instructions or bought pre-made from Cirrus.

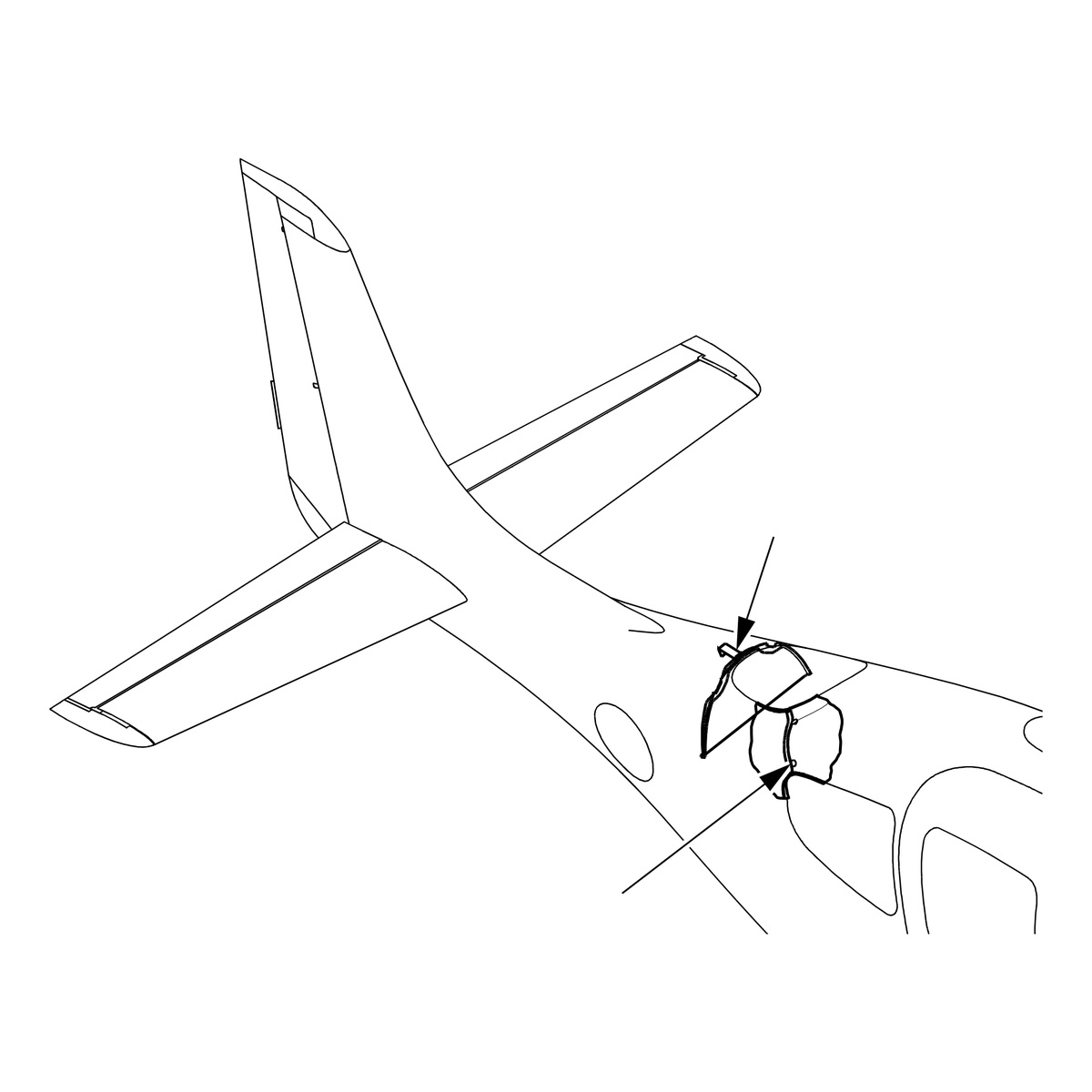

What the kit does: Supplies the bulkhead 222 interior cover bracket, standoffs, speed nuts, reclosable fasteners, washers and screws for the main headliner.
Which kit do I need: SR20 serials 1423 thru 1454 and SR22 serials 0821 thru 1044 take 70091-001 (doors and forward headliner). SR22 serials 0821 thru 0899 also need 70091-002 (main headliner and bulkhead 222 cover). Refer to SB2X-25-12 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
