Description
Cirrus Aircraft 70111-001 RH Front Baffle Repair Kit — SR22, SB2X-71-13

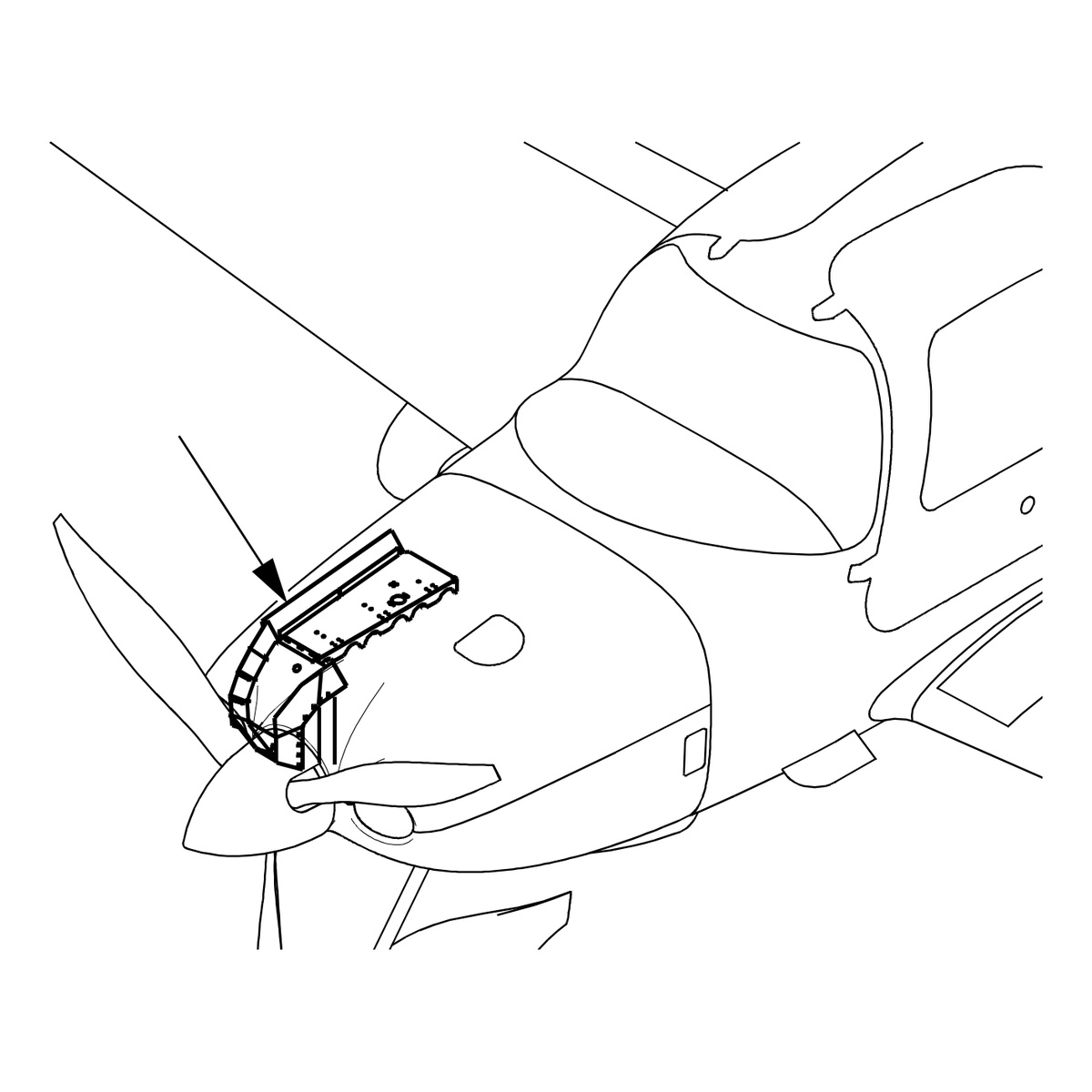

On affected aircraft, contact between the RH front baffle and the forward RH cylinder head can damage the baffle.
SB2X-71-13 is optional, at the owner's option.
What the kit does: Supplies two baffle supports and a repair doubler, with the rivets and hardware, to repair the RH front baffle and upgrade its attachment points.
Note: For SR22 serials 0002 thru 0794 and 0796 thru 0819. SR22 serials 0795 and 0820 thru 1820 use kit 70113-001 under SB2X-71-14. Refer to SB2X-71-13 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
