Cirrus Aircraft 70116-101 BL0 Elevator Hinge Shim — 0.022 inch, SB2X-55-11

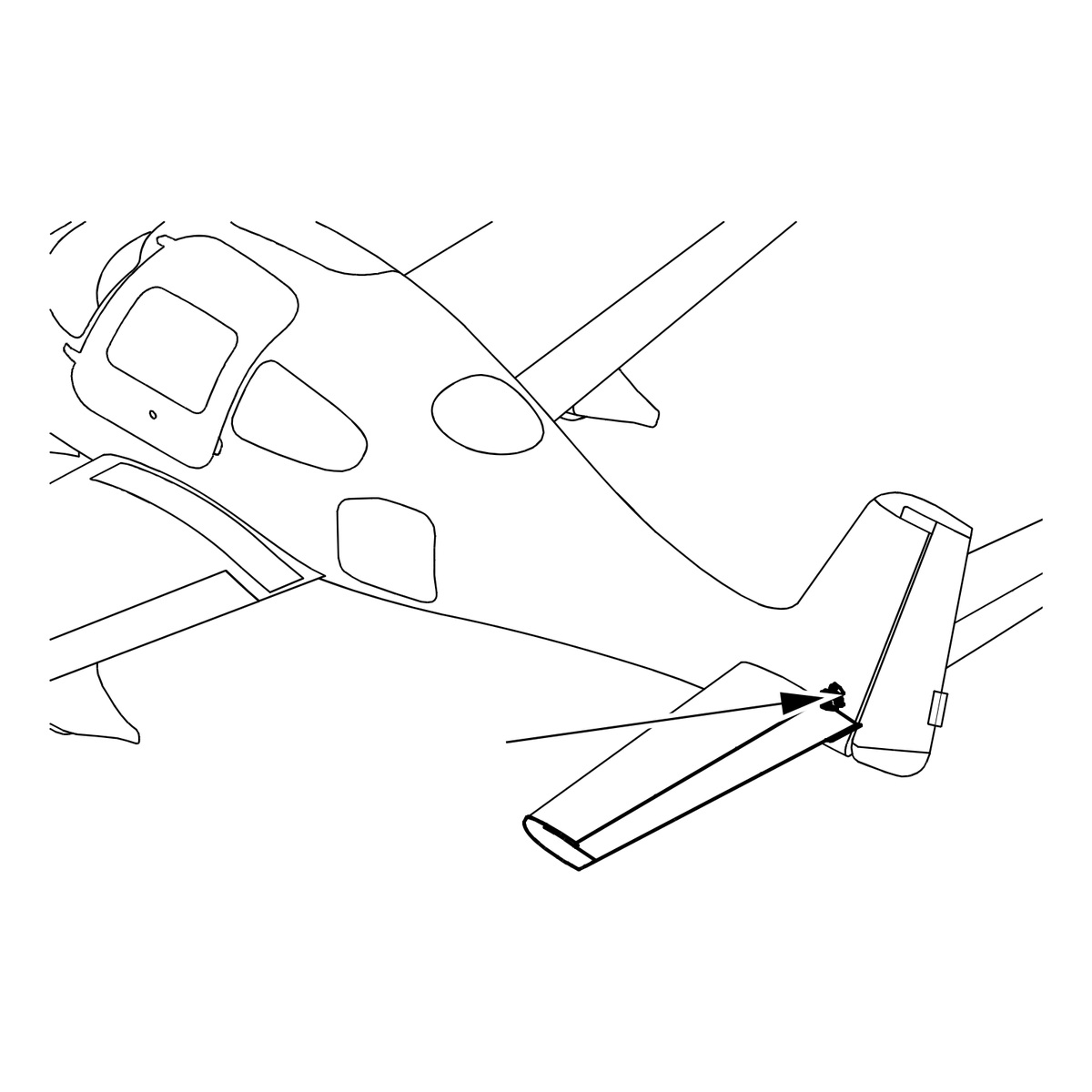

A replacement shim for the BL0 (centerline) elevator hinge — the 0.022 inch shim from kit 70116-001 under SB2X-55-11. On affected aircraft the installation holes on these shims may sit too close to the shim edge; Cirrus recommends replacing any shim whose hole centerline is less than 0.170 inch from the edge. Match the thickness to the shim removed.
Cirrus classes SB2X-55-11 as recommended, at the next annual inspection or within 100 flight hours, whichever occurs first.
Note: For SR20 serials 1423 thru 1485 and SR22 serials 0820 thru 1296. Refer to SB2X-55-11 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
