Description
Cirrus Aircraft 70159-001 Hot Climate Start Fuel Check Valve Kit — SR22, SB2X-28-05
In hot conditions after extended ground operation, affected SR22s can be hard to start because of fuel line vapor lock.
SB2X-28-05 is optional, at the owner's option.

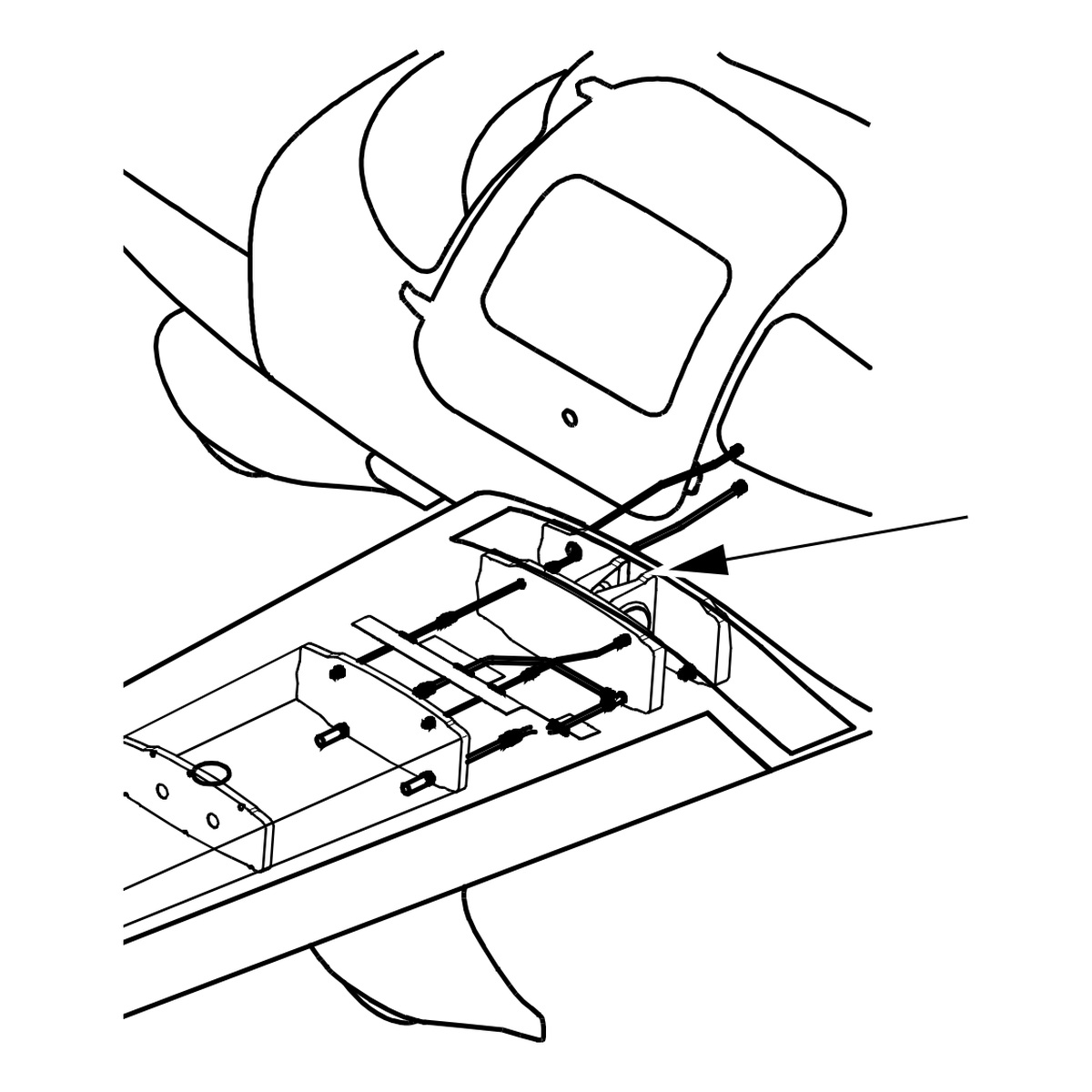

What the kit does: Supplies LH and RH fuel supply tube assemblies with built-in check valves.
Why it works. The check valves stop fuel partly draining back into the tanks, so vapor pockets can't develop in the supply lines.
Note: For SR22 serials 0002 thru 2042. Refer to SB2X-28-05 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
