Cirrus Aircraft 70162-001 60A Alternator Grounding Strap Kit — SR22, SB2X-24-06
SB2X-24-06 inspects the 60A and 100A alternator wires on affected SR22s and adds anti-chafing protection where they run below and aft of the RH baffle. It also adds a grounding strap to 60A alternators, to improve grounding and durability, and enlarges the grommet pass-through at the RH forward baffle on 100A alternators to stop wire chafing.
Cirrus classes SB2X-24-06 as recommended, at the next scheduled maintenance, annual inspection or within six calendar months, whichever occurs first.

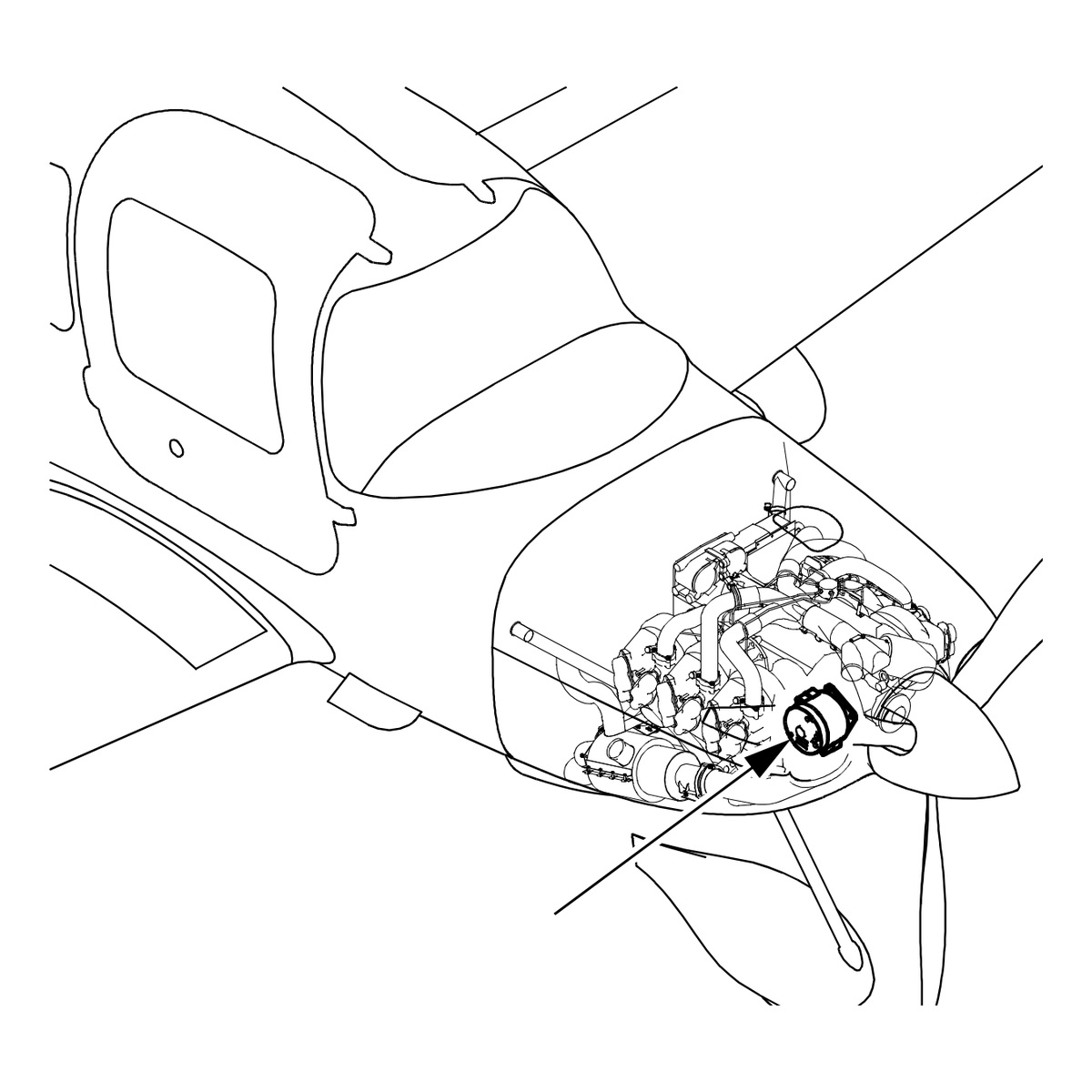

What the kit does: Supplies the 60A alternator grounding strap.
Which kit do I need: Every affected aircraft uses 70131-001. Aircraft with the 60A alternator also need 70162-001. For SR22 serials 0002 thru 1601, 1603 thru 1839 and 1841 thru 2003. Refer to SB2X-24-06 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
