Description
Cirrus Aircraft 70164-002 Static Line Sump Kit — Later Serials, SB2X-34-22

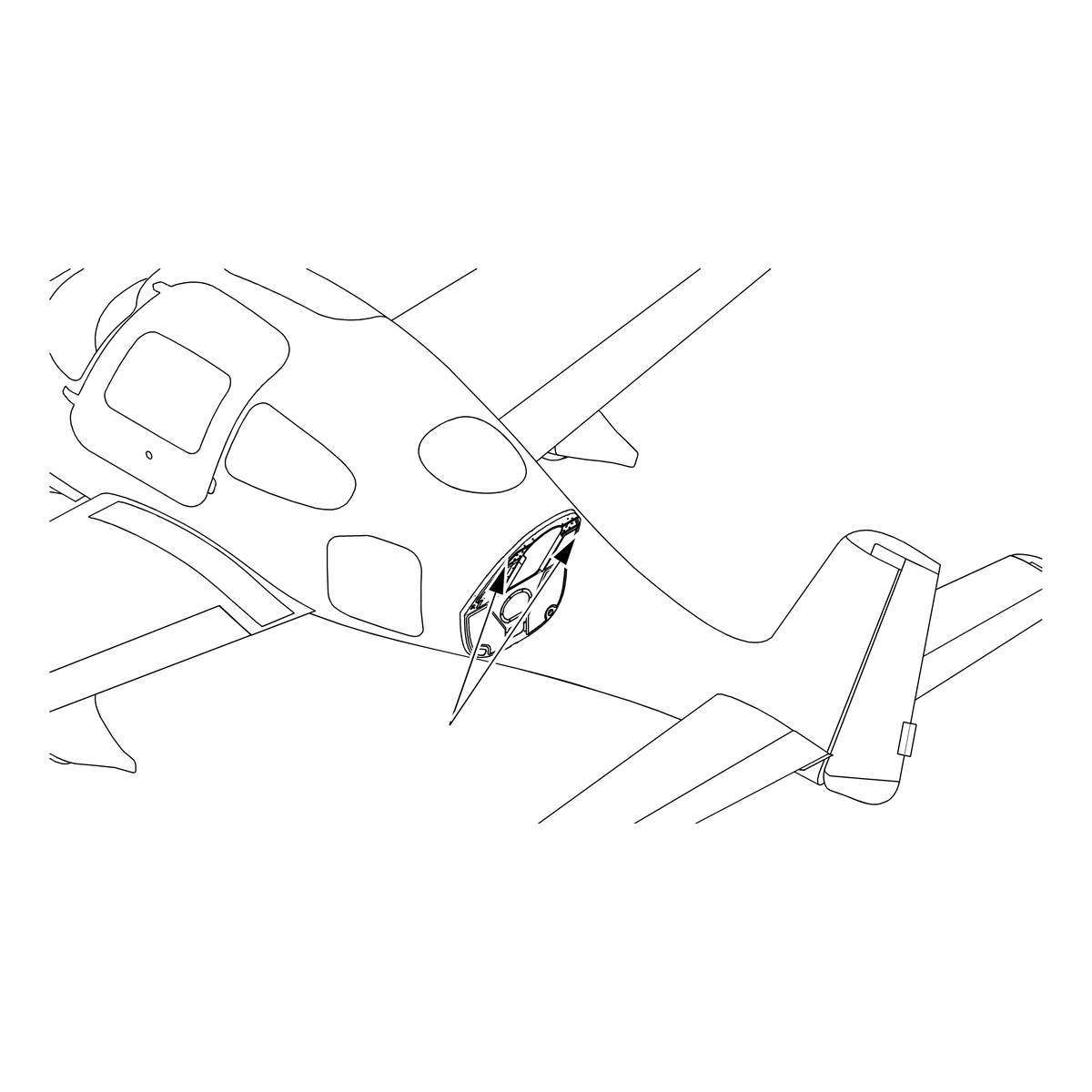

What the kit does: Adds a static line sump to the aft static system and replaces the aft static lines, to improve pitot-static system performance when water gets into the lines.
Note: This kit is for SR20 serials 1423 thru 1705 and SR22 serials 0795, 0820 thru 2036 and 2038 thru 2042. Earlier serials use kit 70164-001. Refer to SB2X-34-22 to confirm the right kit.
Cirrus classes SB2X-34-22 as optional.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
