Cirrus Aircraft 70221-002 EVS Camera Installation Kit — SR22/SR22T with Dual ADC, SB2X-93-01

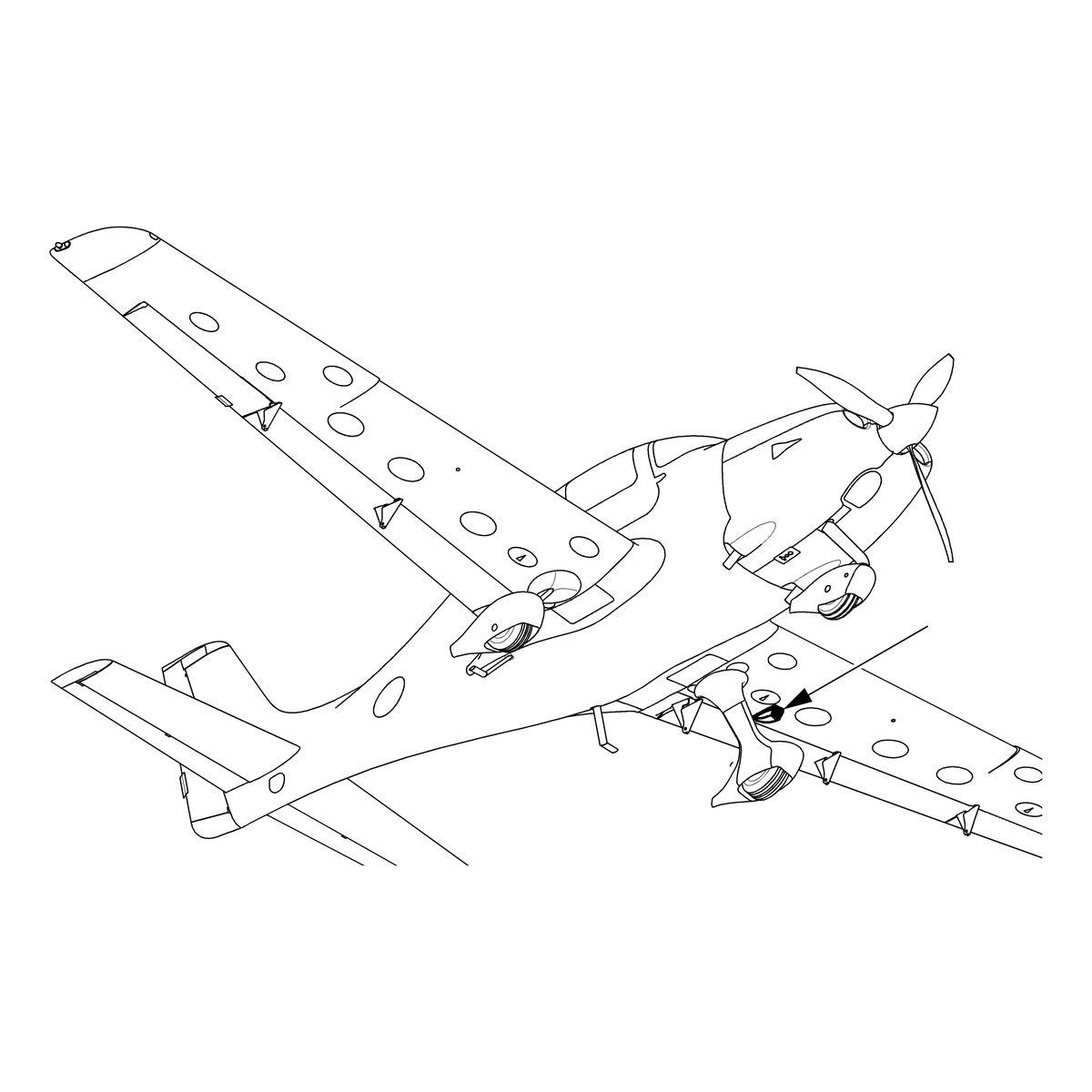

SB2X-93-01 installs the optional Enhanced Vision System (EVS) — an infrared camera mounted under the left wing, with its wiring — on aircraft with Perspective avionics and 12-inch displays.
The bulletin is optional, at the owner's option. The Cirrus drill template for the wing, T10775, is ordered separately.
What the kit does: Supplies the EVS camera with its spacer and gasket, a circuit breaker and cap, the graphic overlay for this configuration, and the mounting hardware.
Which kit do I need: The kit depends on the model and on options already installed. SR22 and SR22T without dual air data computers or the Cirrus Landing Gear Simulator take 70221-001; with dual air data computers and no simulator, 70221-002; aircraft with the simulator take 70221-003 or -004. SR20 aircraft use 70221-005 thru -010. For SR22 serials 2979, 2992, 3002, 3003, 3026 and subsequent with Perspective avionics and 12-inch displays, and SR22T serials 0001 and subsequent with 12-inch displays. Refer to SB2X-93-01 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
