Cirrus Aircraft 70222-001 W1010 Harness Connector Replacement Kit — SR22, SB2X-91-01

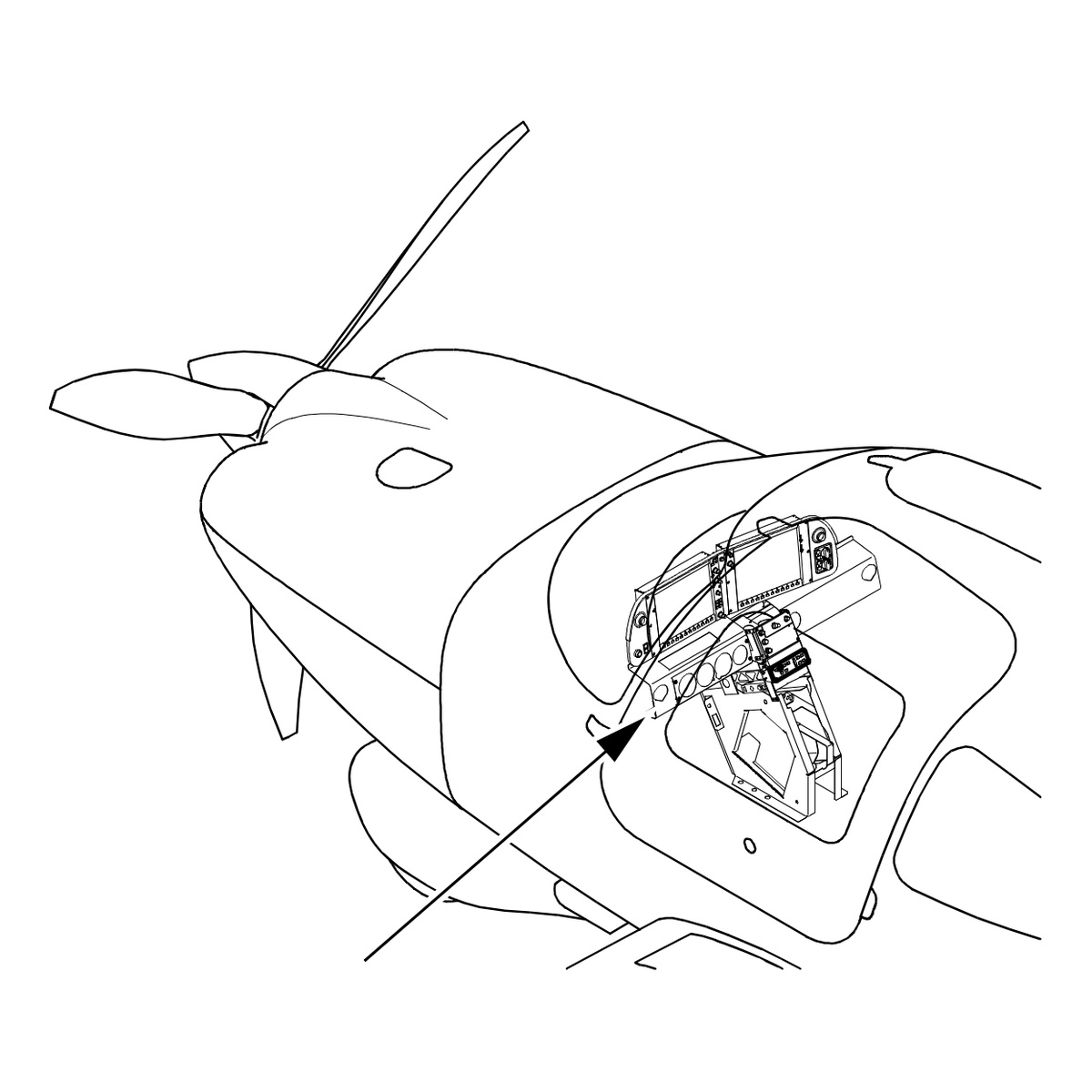

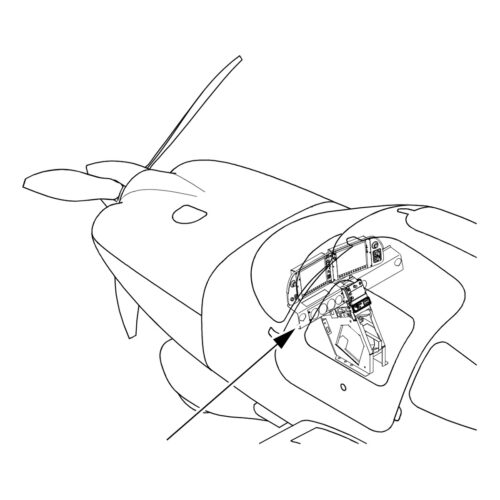

On affected SR22s, the forward fuselage wire harness W1010 may have been installed under more tension than necessary, and some of its plugs and jacks have a low-friction fit — so they can come disconnected.
Cirrus classes SB2X-91-01 as recommended, at the next scheduled maintenance, annual inspection or within 12 calendar months, whichever occurs first.
What the kit does: Supplies three pairs of improved connectors, with the crimp pins, sockets and wire markers to fit them.
Why it works. The improved connectors have a more secure fit, so they stay connected.
Note: For SR22 serials 2979, 2992, 3002, 3003, 3024 and 3026 thru 3102. Refer to SB2X-91-01 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
