Description
Cirrus Aircraft 70227-002 Brake Temperature Sticker Kit — SR22, SB2X-05-01

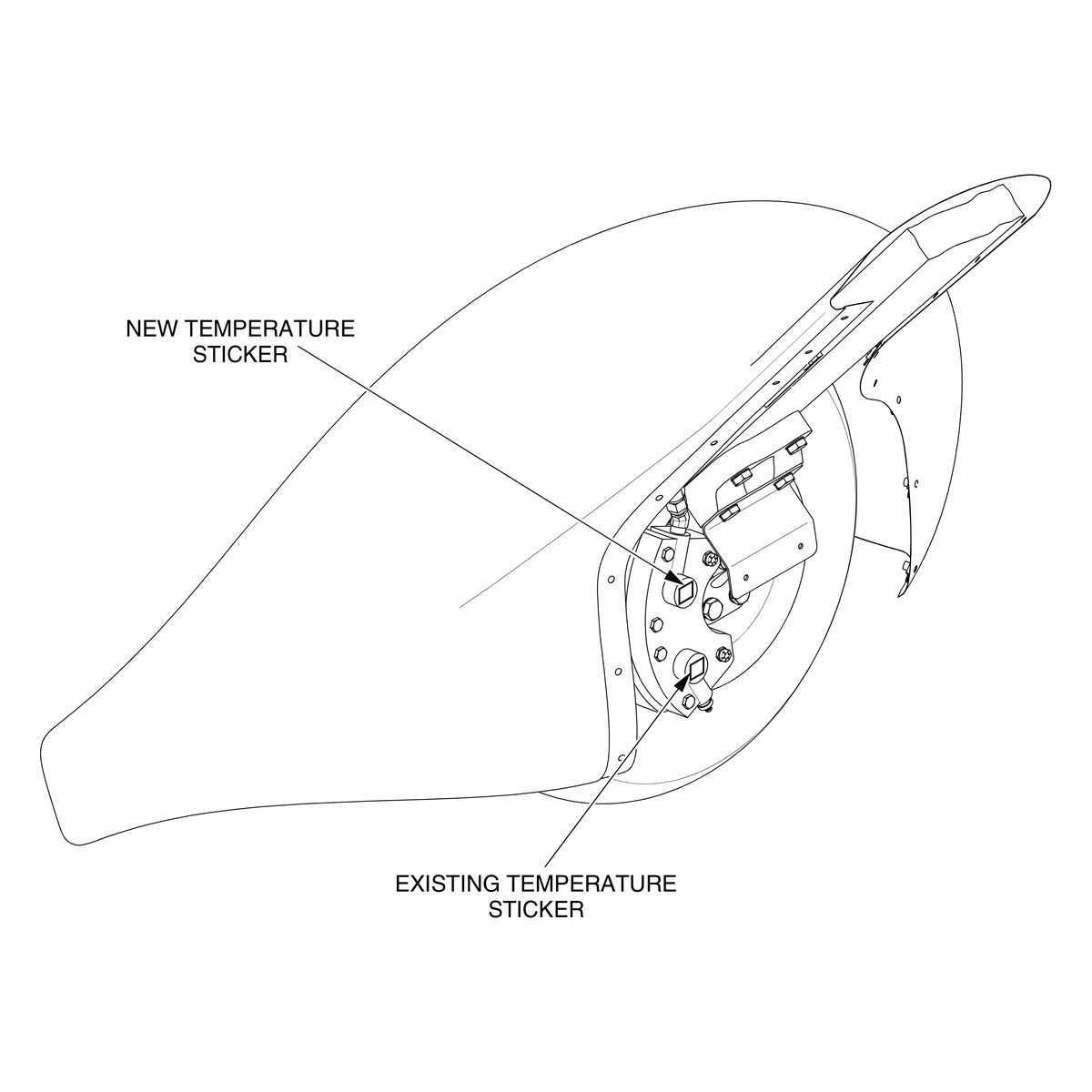

What the kit does: Adds a second brake temperature indicator sticker, with a lower activation temperature, alongside the existing one on each main brake assembly, together with the temporary maintenance manual and POH revisions that go with it. Installing it allows the brake assembly O-ring replacement interval to be extended from 100 hours to an on-condition, recommended 5-year interval.
Note: This kit is for the SR22; SR20 aircraft use kit 70227-001. On SR22 serials 0002 thru 1727, AD 2006-21-03 must be complied with before this bulletin is installed. Refer to SB2X-05-01 to confirm applicability before ordering.
Cirrus classes SB2X-05-01 as optional.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
