Cirrus Aircraft 70242-001 LH Forward Baffle Clearance Kit — SR22, SB2X-71-16

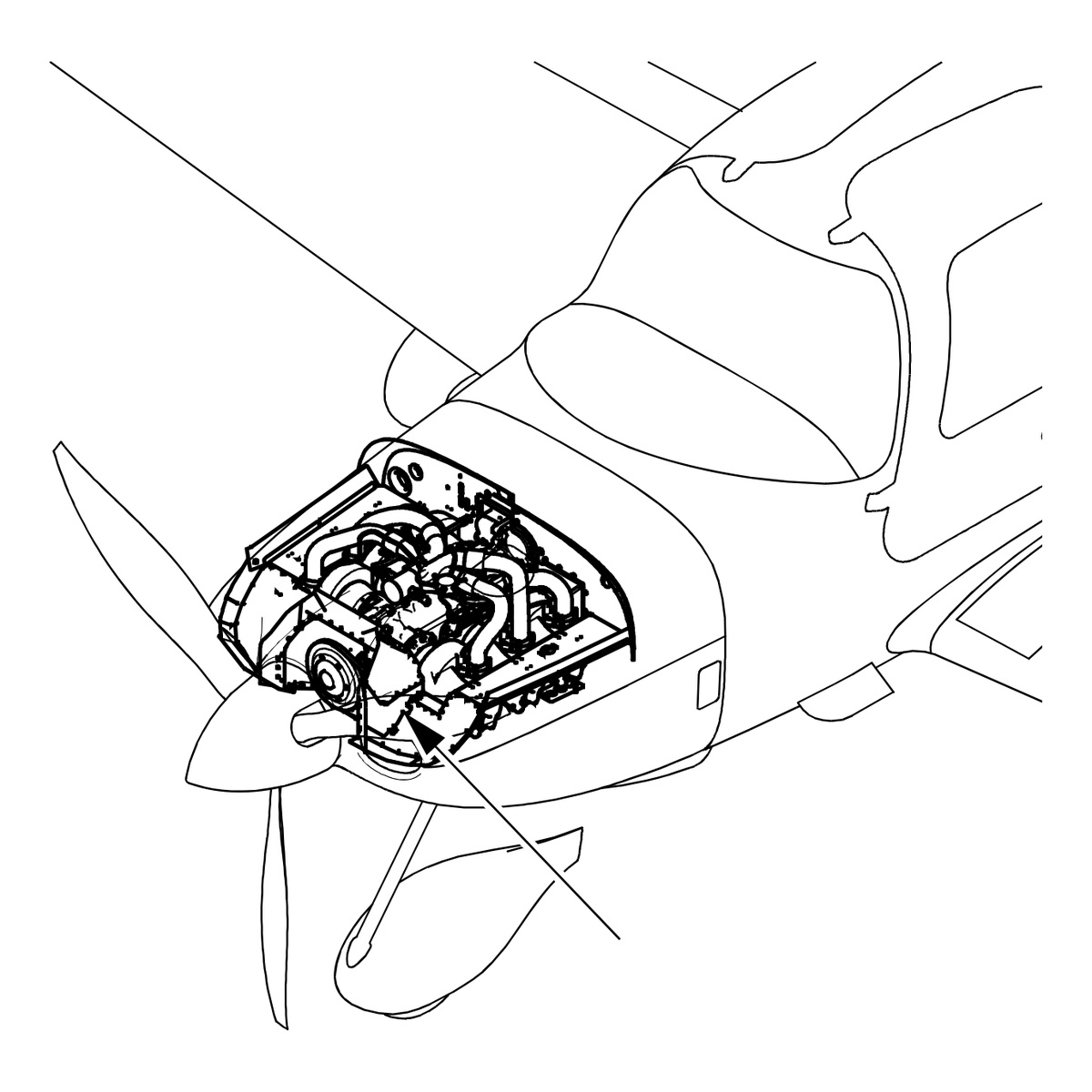

On affected SR22s, the LH forward baffle assembly can contact the engine cooling fins or case, or the diode cover on alternator 2, and chafe.
Cirrus classes SB2X-71-16 as recommended, at the next scheduled maintenance or annual inspection, whichever occurs first.
What the kit does: Supplies an improved closeout, two seals, a doubler and rivets used to modify the LH forward baffle.
Why it works. The modified baffle has more clearance to the engine and to alternator 2, so it no longer rubs against them.
Note: For SR22 serials 2979 thru 3619 with Perspective avionics — the bulletin excludes a number of serials within that range. Refer to SB2X-71-16 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
