Description
Cirrus Aircraft 70257-001 Induction Air Box Seal Kit — SR22T, SB2X-71-17

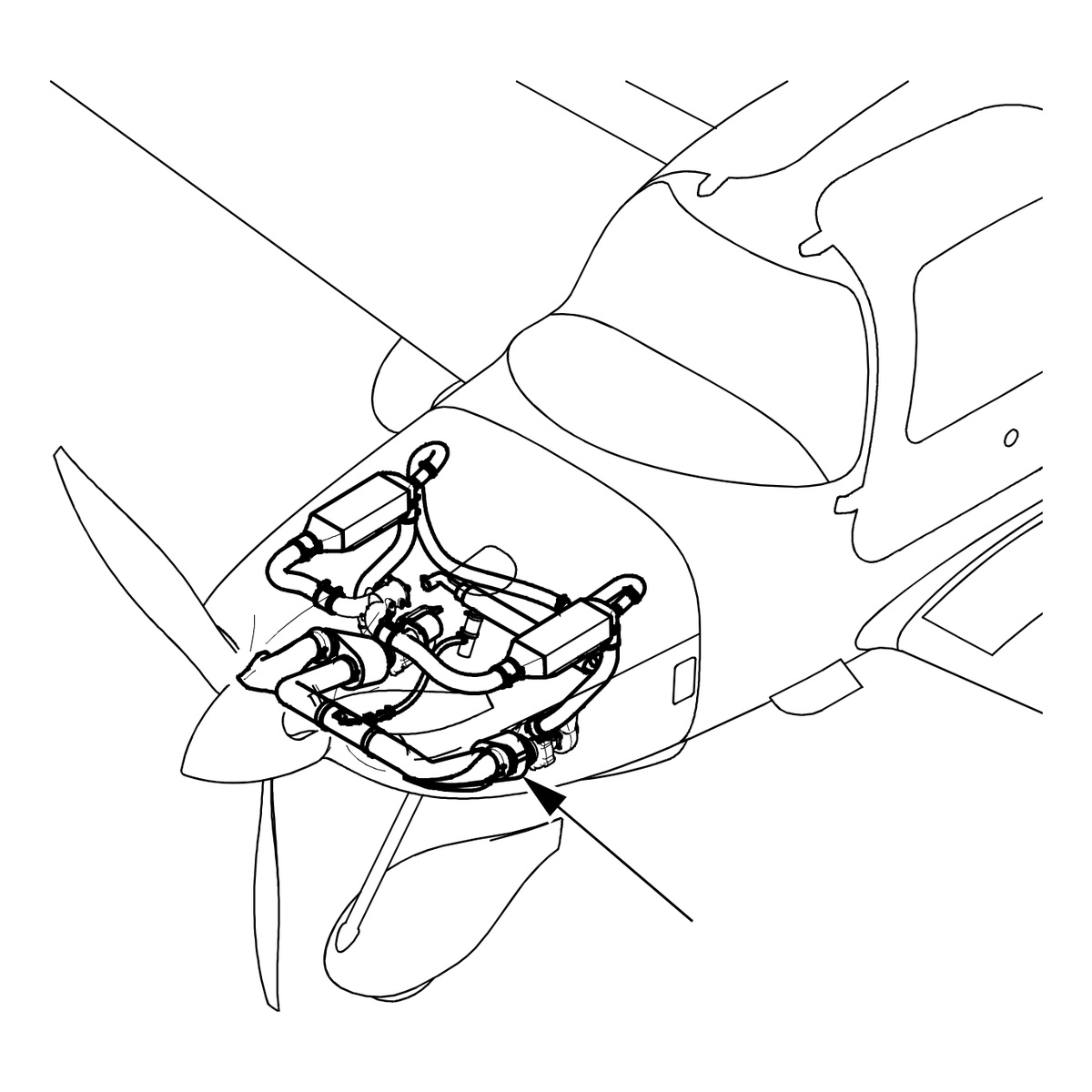

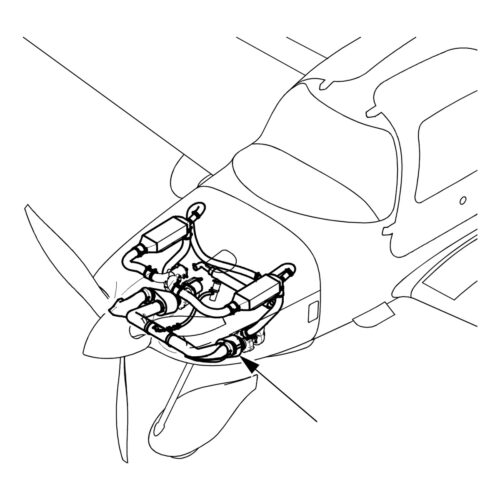

On affected SR22Ts, the induction system air box seals could disbond and be ingested into the turbocharger compressor.
Cirrus classes SB2X-71-17 as mandatory, within the next 10 flight hours.
What the kit does: Supplies two reinforced silicone fiberglass air box seals.
Note: Group A — SR22T serials 0001 thru 0169, except 0154, 0159 and 0163. Group B — serials 0004, 0019, 0027, 0047, 0097, 0126, 0127, 0135, 0138, 0139, 0144, 0155, 0157, 0158, 0160 and 0161 — had the reinforced seals fitted at the factory, but the air box flange welds and slots were incorrectly modified; the bulletin inspects and corrects them. Refer to SB2X-71-17 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
