Cirrus Aircraft 70265-001 Aft RH Baffle Gusset Kit — SR22T, SB2X-71-23

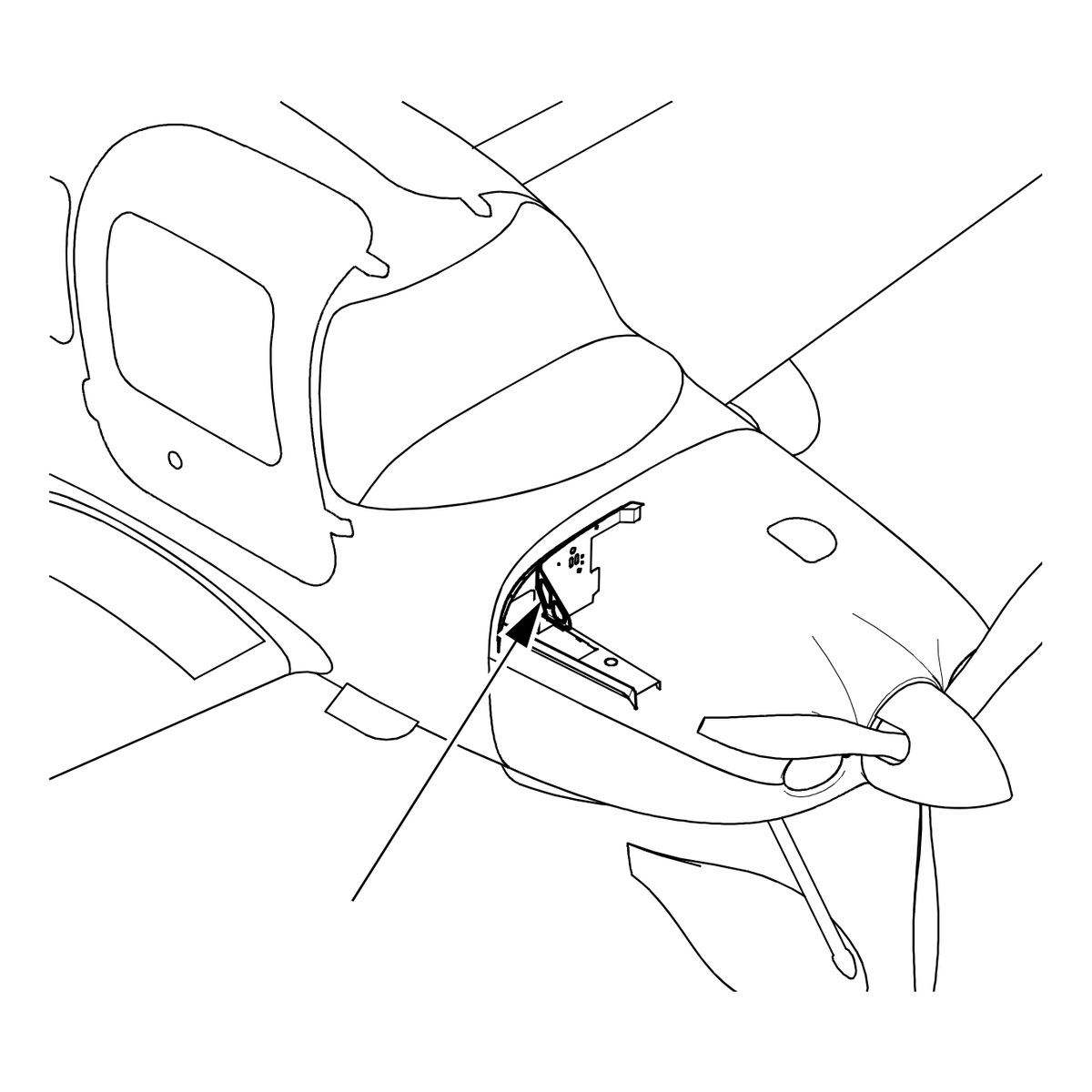

On affected SR22Ts, airflow can deflect the aft RH baffle, opening a gap between the baffle and the intercooler and losing cooling air to the cylinders — mainly the #3 cylinder.
Cirrus classes SB2X-71-23 as recommended, at the next scheduled maintenance, annual inspection or within 12 calendar months, whichever occurs first.
What the kit does: Supplies a baffle gusset with its screws, washers and nuts.
Why it works. The gusset strengthens the aft RH baffle so airflow no longer deflects it.
Note: For SR22T serials 0001 thru 0047, 0049 thru 0311, 0313 thru 0316, 0318 and 0320. Refer to SB2X-71-23 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
