Description
Cirrus Aircraft 70518-001 Alternate Air Box Bracket Spacer Kit — SR22T, SB2X-71-27

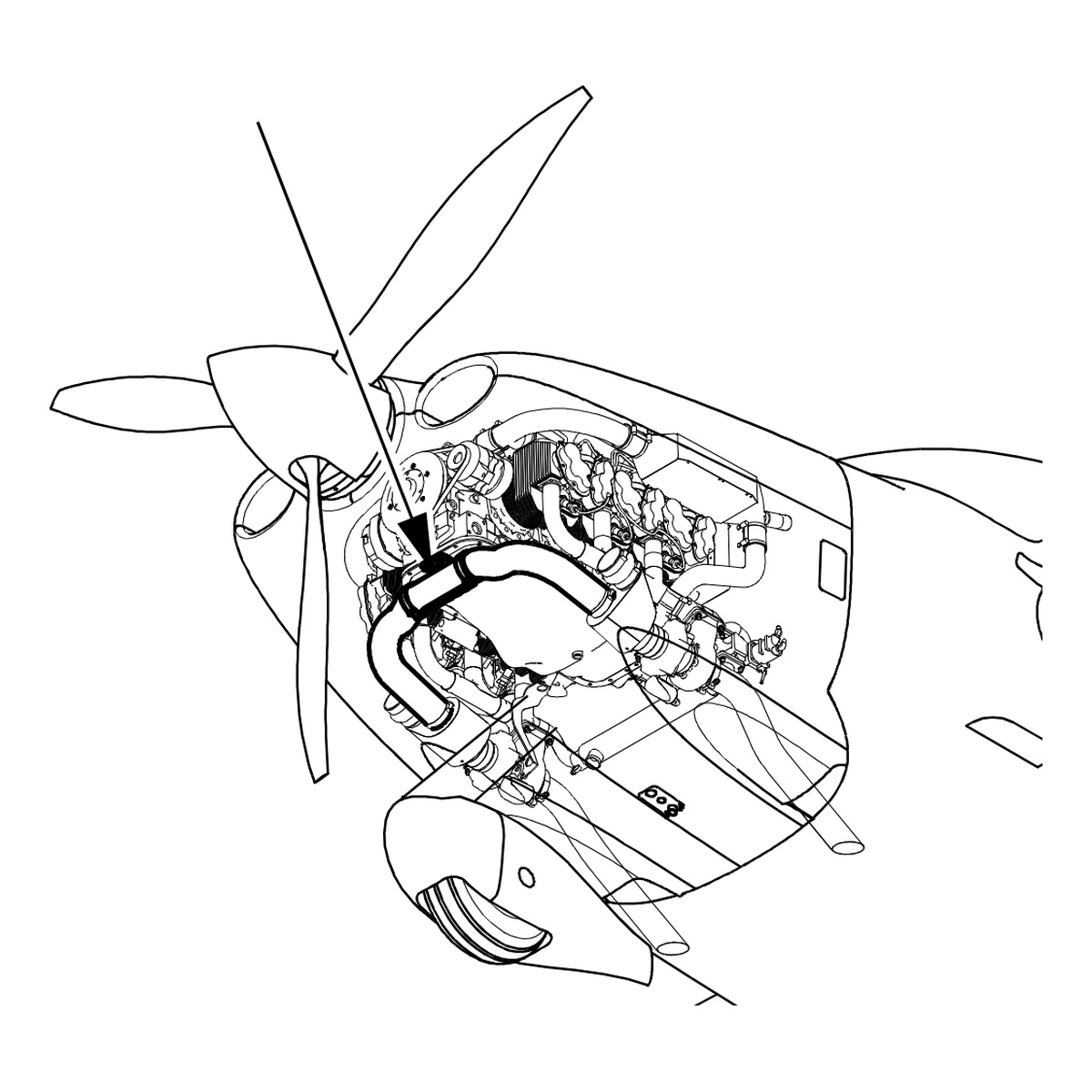

On affected SR22Ts, the alternate air box bracket may contact the oil sump, causing localized deformation or chafing on the surface of the sump. Continental Motors SB15-3 has additional information.
Cirrus classes SB2X-71-27 as mandatory, at the annual or 100-hour inspection or the next scheduled maintenance when the oil sump is accessible. The bracket is inspected for interference; new fasteners are installed only if required.
What the kit does: Supplies the spacer plate and the screws installed where the inspection calls for new fasteners.
Note: For SR22T serials 0001 thru 1048, 1051, 1058 and 1062. Refer to SB2X-71-27 to confirm applicability before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
