Description
Cirrus Aircraft 70605-001 Remote-Mount Oil Pressure Sensor Kit — SR22, SB2X-79-08
On aircraft with the oil pressure sensor mounted directly on the engine block, long-term vibration works on the connector built into the sensor and the gauge begins reading erratically.
Cirrus classes SB2X-79-08 as recommended, on condition of erratic oil pressure indication — it is done when the symptom appears.

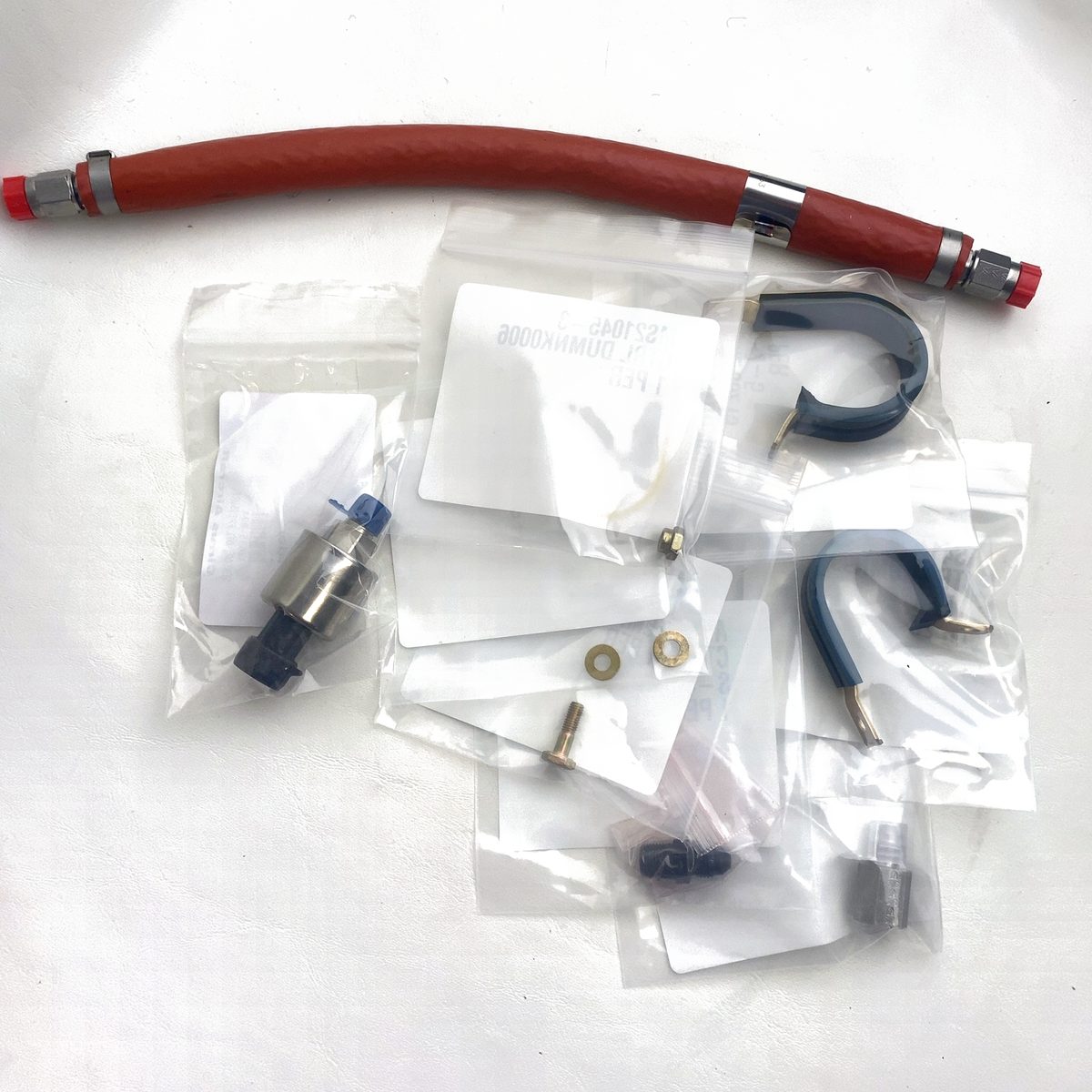

What the kit does: Moves the oil pressure sensor off the engine block. Supplies a new sensor and a flexible hose to plumb it remotely, plus the adapter, fitting, clamps and hardware to mount it.
Why it works. The sensor is no longer bolted to a vibrating engine block, so the connector inside it stops being shaken — which is what produced the erratic readings.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
