Description

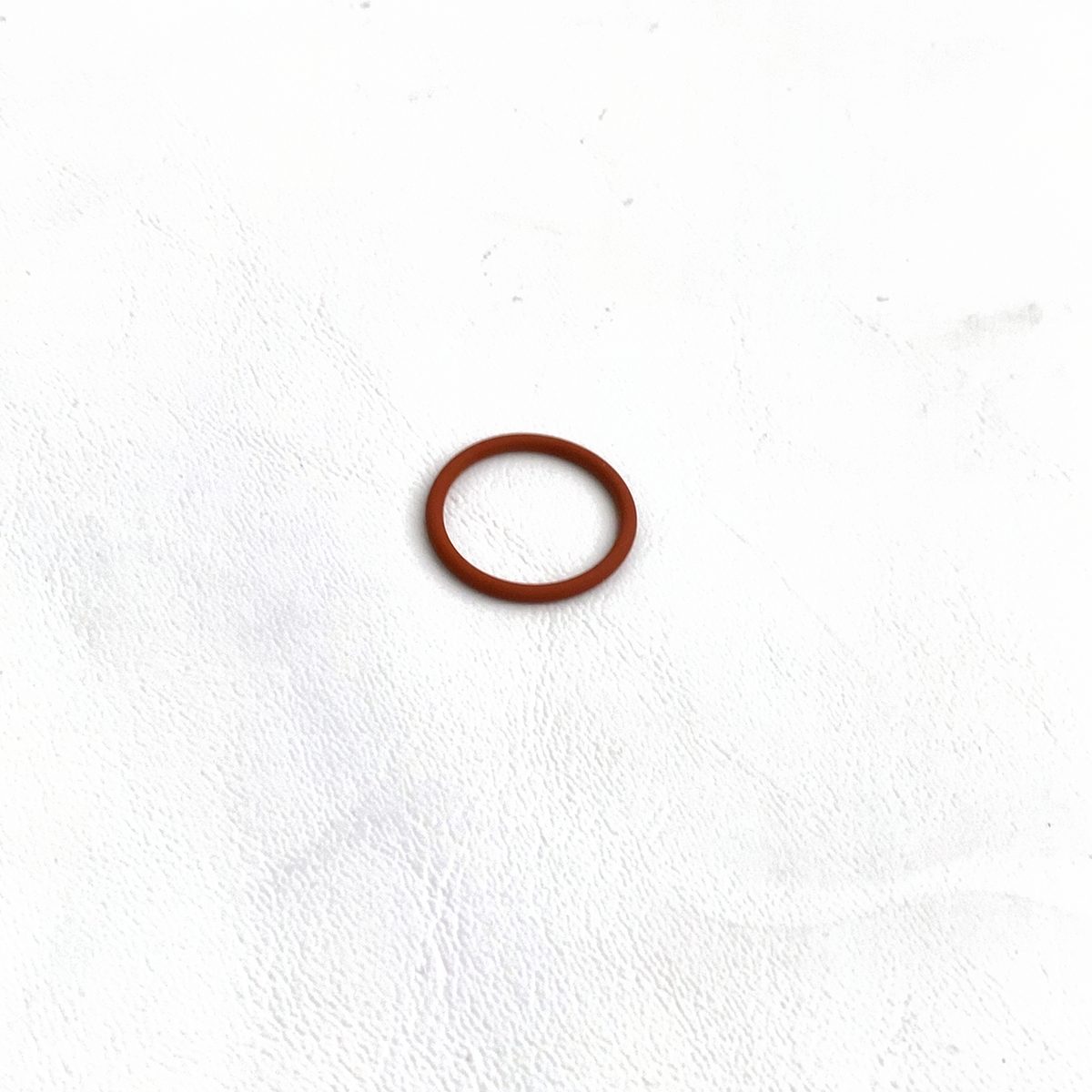

AS3582-017 O-Ring — TKS Filter
Standard AS3582 O-ring, listed in the TKS ice protection filter assembly (IPC 30-07-01), two per filter. Listed as an alternate for 21986-205 and MS9068-017. The Cirrus description gives 11/16 in ID × 13/16 in OD × 1/16 in width, silicone.
Fit, per the Cirrus Illustrated Parts Catalog:
- SR22 serials 3851 and up with FIKI ice protection
- SR22T serials 0316 and up with FIKI ice protection
Serial ranges are transcribed from the Cirrus IPC. Confirm your aircraft's serial number, installed equipment and service bulletin compliance against current Cirrus documents before ordering.
Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.
