Nut, MS21042-08

Part #: MS21042-08

Ready to Ship Today: 0
Available to Order: 111 (typically ships in 4–7 business days)
How shipping works →
Quick Overview:

NUT

$0.76

/ ea

Description

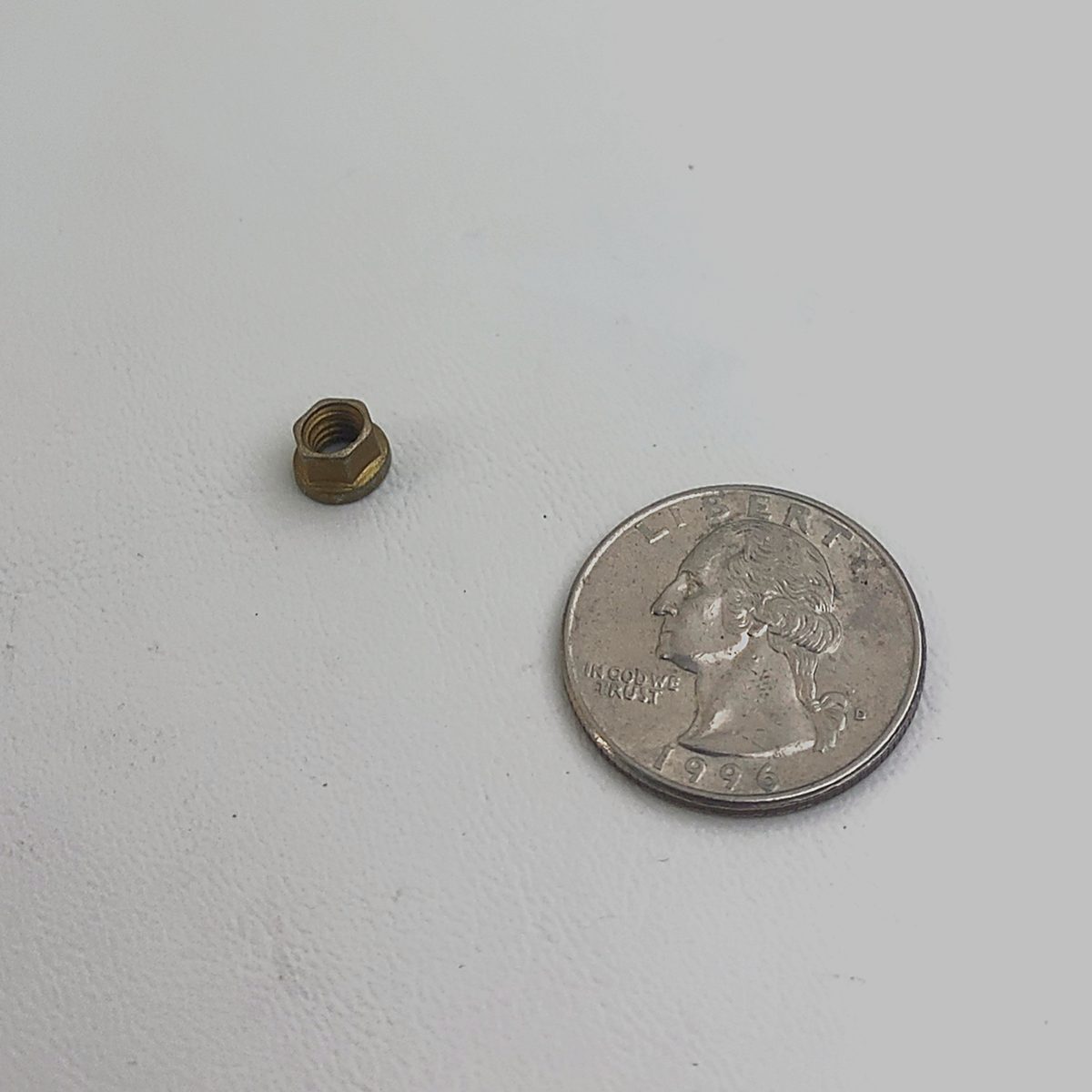

Cirrus Aircraft MS21042-08 Nut

Nut hardware (price list description: Nut). The IPC calls it a nut, a lock nut or a self-locking nut, with quantity and serial effectivity set at each location. It is not an ice protection part; the IPC has no ice protection (ATA 30) rows for it. Not every location below is listed for both the SR20 and the SR22.

Where the Cirrus IPC lists it:

  • Environmental system (IPC 21-50-01)
  • Electrical power (IPC 24-50-03, 24-50-04)
  • Equipment and furnishings (IPC 25-10-01)
  • Flight controls (IPC 27-00-04, 27-31-02)
  • Indicating and recording (IPC 31-10-01, 31-30-01)
  • Lights (IPC 33-40-01, where the SR22 line reads "nut, self locking")
  • Wings (IPC 57-50-01)
  • Power plant (IPC 71-00-02, 71-00-03, 71-00-04)
  • Engine indicating (IPC 77-40-01)

At the environmental system and wing locations the IPC shows MS21045-08 and MS21044N08 as alternates for MS21042-08.

Confirm the size, material and part number against your aircraft's Illustrated Parts Catalog and serial number before ordering.

Reference only — not a maintenance authority. The part numbers, effectivity and service bulletin references shown above are published as an aid to our customers and may not reflect current Cirrus data. They must not be used as the basis for installation. Mechanics must obtain and use their own current Cirrus Illustrated Parts Catalog and the current revision of any service bulletin, and must verify applicability against the aircraft serial number, service bulletin compliance and any installed STCs, before ordering or installing any part.

Additional information

Weight 0.1 lbs
Dimensions 0.5 × 0.5 × 0.3 in
Manufacturer

Cirrus Aircraft

Unit of Measure

EA

Normally Stocked
